Horizon v2
The Horizon Supercontinuum Fiber Laser is a cutting-edge optical source designed to redefine performance in spectroscopy and imaging. With an ultra-flat spectrum, free of spurious spectral peaks, it spans an impressive spectral range of 410 and 2300 nm.
With its spatial coherence, broad spectral coverage and spectral flatness, Horizon outperforms traditional supercontinuum sources
Ideal for advanced scientific and industrial applications, including fluorescence lifetime imaging and beyond, where consistent, high- quality illumination is critical. Whether in research or industrial environments, Horizon empowers users with a robust, high-performance solution for their optical needs.
Description
Horizon V2 – Supercontinuum Fiber Laser with Ultra-Flat Spectrum
The Horizon Supercontinuum Fiber Laser is a cutting-edge optical source designed to redefine performance in spectroscopy, imaging, and other demanding optical applications. Featuring an ultra-flat spectrum, free of spurious spectral peaks, it spans an impressive spectral range from 410 to 2300 nm.
With its spatial coherence, broad spectral coverage, and exceptional spectral flatness, Horizon outperforms traditional supercontinuum sources. Its highly stable output makes it ideal for applications where consistent, high-quality illumination is essential.
Whether used in advanced scientific research or industrial environments, the Horizon series provides a robust, high-performance solution for professionals requiring reliability, precision, and broad spectral capability.
Key Performance Features
Spectral Range:
410 – 2300 nm
Average Power:
≥ 4 W
Visible Range Output (410–850 nm):
≥ 300 mW
Ultra-Flat Spectrum:
Uniform spectral intensity free from unwanted peaks, ensuring accurate and reproducible results.
Outstanding Power Stability:
Designed for long-term reliability and consistent performance.
Ideal Applications
- Fluorescence lifetime imaging
- Time-resolved spectroscopy
- Broadband spectroscopy and imaging
- Scientific research and development
- Industrial applications requiring stable broadband illumination
Specifications
| Specification | Value |
|---|---|
| Spectral Range | 410 – 2300 nm |
| Repetition Rate | 80 ± 2 MHz |
| Average Power | ≥ 4 W |
| Visible Range (410–850 nm) Average Power | ≥ 300 mW |
| Pulse Duration | ≤ 10 ps @ 1060 nm | ≤ 250 ps full spectrum* |
| Power Stability | ≤ 0.5 % (std. dev.) |
| Polarization | Unpolarized |
| Output Port | Single Mode Fiber, 1.0 m length (customizable) |
| Optical Output | Collimated (450–1000 nm), single‑mode across full spectrum |
| Synchronization / Connections | TTL (SMA) |
| Beam Diameter @ 1 m | @470 nm ≤ 2 mm / @580 nm ≤ 2.5 mm / @725 nm ≤ 3.5 mm / @1150 nm ≤ 5.5 mm |
| Spatial Mode Quality (M²) | ≤ 1.2 |
| Cooling | Thermoelectric cooler + air cooling |
| Power Requirements | 110V – 220V / 50–60 Hz |
| Operating Temperature | 20 – 30 ºC |
| Storage Temperature | 0 – 60 ºC |
| Dimensions (W × D × H) | 436 × 560 × 151 mm |
| Control | Manual / Software via USB |
| Safety Connections | Interlock / Key |

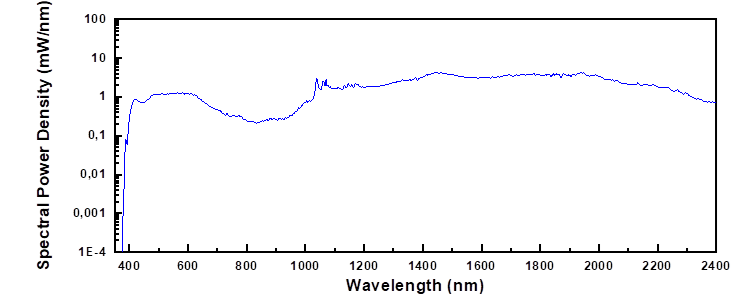

| Optical Spectrum | Typical supercontinuum optical spectrum (image reference) |
| Security |
This product is a Class 4 laser. Appropriate safety measures should be taken. Spectral profile and detailed specifications available under request. |
| Note | * Estimated value |
