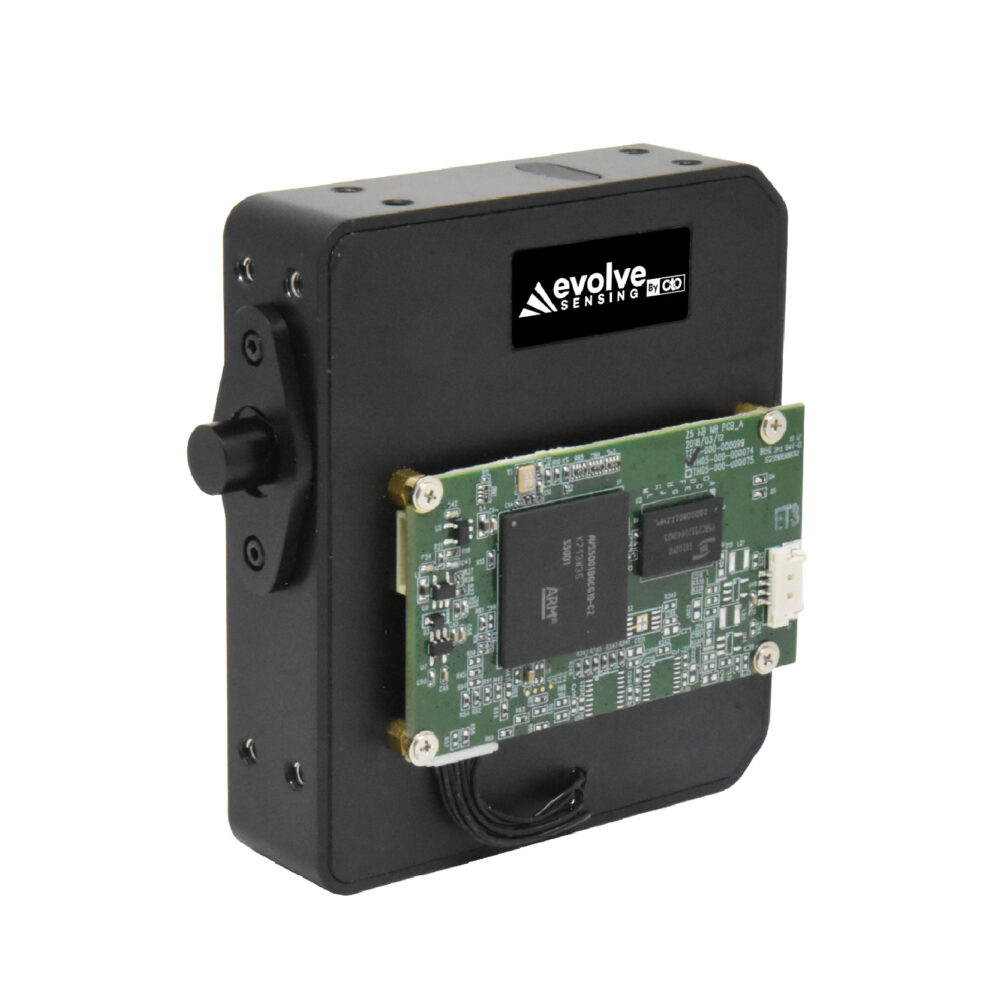

HummingBird Compact OEM UV-Vis Spectrometer
The HummingBird (HB) Series is a compact, high-performance fiber optic spectrometer featuring a crossed Czerny–Turner optical design for high resolution, low stray light (<0.2%), and excellent sensitivity. Equipped with a linear CCD/CMOS array sensor and a 32-bit RISC controller, it delivers fast exposure times (down to 0.2 ms), acquisition rates over 1 kHz, and buffering of up to 4000 spectra. The HB Series combines speed, accuracy, and low power consumption for demanding spectral applications. Designed for easy integration, it offers USB power, six I/O ports, configurable gratings, and wavelength ranges from 180 – 1100 nm, making it ideal for handheld, OEM, and precision analytical instruments.
Description
The HummingBird (HB) Series is a compact, high-performance fiber optic spectrometer featuring a crossed Czerny–Turner optical design for high resolution, low stray light (<0.2%), and excellent sensitivity. Equipped with a linear CCD/CMOS array sensor and a 32-bit RISC controller, it delivers fast exposure times (down to 0.2 ms), acquisition rates over 1 kHz, and buffering of up to 4000 spectra. The HB Series combines speed, accuracy, and low power consumption for demanding spectral applications. Designed for easy integration, it offers USB power, six I/O ports, configurable gratings, and wavelength ranges from 180 – 1100 nm, making it ideal for handheld, OEM, and precision analytical instruments.
Applications
- UV–Vis–NIR spectroscopy and optical analysis
- Display and semiconductor thin-film inspection
- Biomedical detection and environmental monitoring
- Thin-film and color measurement
- Process and quality control monitoring
- Scientific and industrial R&D
- OEM and embedded system integration
Models and Wavelength Ranges
- All Models: From 180–1100 nm
Main Features
- Compact crossed Czerny–Turner optical design for high sensitivity and low stray
light - Integrated 32-bit RISC microcontroller for fast processing and precise control
- Wavelength range: 180–1100 nm, optical resolution configurable from 0.2–10.5 nm
- Modular configuration – customizable gratings, sensors, and slits (10–300 µm)
- Multiple sensor options: fast-exposure CMOS or back-thinned CCD (NIR enhanced)
- Integration time: 0.1 ms to 65 s, depending on sensor type
- USB-powered operation with high-speed data transfer (USB 2.0 @ 480 Mbps)
www.evolve-sensing.com - Six programmable I/O pins for external device control and triggering
- Up to 4,000 spectra buffering with continuous capture support
- Flash ROM calibration storage for wavelength, linearity, and intensity correction
- Compact, lightweight design – available with or without external housing
- Fully compatible with SpectraSmart spectral measurement software and SDK
Specifications
Technical Details
- Optical resolution: 0.2 – 10.5 nm (depends on slit/grating)
- Wavelength repeatability: ± 0.05 nm (typical)
- Wavelength accuracy: ± 0.15 nm (up to ± 1.0 nm in harsh environments)
- SNR: 350 – 500 (model-dependent)
- Dynamic range: 5400 / 3600 (CMOS) – 4300 – 3800 (CCD)
- Optical structure: Crossed Czerny-Turner (2nd & 3rd order rejection)
- Grating: 15 options (180 – 1100 nm coverage)
- Slit sizes: 10 / 25 / 50 / 100 / 200 / 300 µm
- Integration time: 0.1 ms – 65 s (depends on sensor clock)
- Thermal stability: < 0.04 nm/°C
- Operating temperature: 0 °C – +50 °C; Storage: –30 °C – +70 °C
- Humidity: 0 – 90 % non-condensing
- Data transfer: USB 2.0 (480 Mbps high speed)
- Fiber optic interface: SMA905 (Φ3.18 mm)
- Power: USB, 300 mA @ +5 VDC (typical); Voltage 4.75 – 5.25 V; Power-up time < 4 s
Dimensions
- 83 (L) × 75.5 (W) × 26.75 (H) mm
Power Requirements
- Power via USB: 500mA at +5 VDC
- USB 2.0 @ 480 Mbps (high speed)
- Power requirement (VBUS): 300 mA at +5 VDC
- Supply voltage: 4.75–5.25 V
- Power-up time: <4 s
