IceBlinkPRO V1
Supercontinuum Fiber Laser with Variable Frequency
This supercontinuum fiber laser spans a spectral range of 410 – 2300 nm and is equipped with a pulse picker for enhanced control.
The pulse picker enables users to select specific laser pulses, allowing for adjustable repetition rates and tailored light output.
This feature makes the Iceblink with variable frequency ideal for precise, time-sensitive applications. Its spatial coherence and broad spectrum makes it a strong alternative to traditional lamps, single-line lasers, LEDs, and ASE sources, supporting scientific and industrial uses like fluorescence lifetime imaging, time-resolved spectroscopy and other.
Description
IceblinkPRO V1
Supercontinuum Fiber Laser with Variable Frequency
This supercontinuum fiber laser spans a spectral range of 410 – 2300 nm and is equipped with a pulse picker for enhanced control.
The pulse picker enables users to select specific laser pulses, allowing for adjustable repetition rates and tailored light output.
This feature makes the Iceblink with variable frequency ideal for precise, time-sensitive applications. Its spatial coherence and broad spectrum makes it a strong alternative to traditional lamps, single-line lasers, LEDs, and ASE sources, supporting scientific and industrial uses like fluorescence lifetime imaging, time-resolved spectroscopy and other.
IceblinkPRO – Key Performance Overview
Spectral Range
410 – 2300 nm
Average Power
≥ 2 W @ 40 MHz (fundamental frequency)
Visible Range Average Power (410–850 nm)
≥ 150 mW @ 40 MHz
Tunable Pulse Repetition Rate
40 / 20 / 10 / 5 / 2.5 / 1 MHz / 500 kHz
Pulse Control
- Adjustable repetition rates
- Equipped with a pulse picker for enhanced control
Specifications
Specifications:
| Parameter | Specification |
|---|---|
| Spectral Range | 410* – 2300 nm |
| Tunable Pulse Repetition Rate | 40 / 20 / 10 / 5 / 2.5 / 1 MHz / 500 kHz*** |
| Average Power | ≥ 2 W @ 40 MHz |
| Visible Range (410–850 nm) Average Power | ≥ 150 mW @ 40 MHz |
| Pulse Duration | ≤ 10 ps @ 1060 nm | ≤ 250 ps full spectrum**** |
| Power Stability | ≤ 0.5% (std. dev.) |
| Polarization | Unpolarized |
| Output Port | Single‑mode fiber, 1.0 m length (customizable) |
| Optical Output | Collimated (450–1000 nm), single‑mode across full spectrum |
| Synchronization / Connections | TTL (SMA); NIM (SMA) under request |
| Beam Diameter @ 1 m | @470 nm ≤ 2 mm / @580 nm ≤ 2.5 mm / @725 nm ≤ 3.5 mm / @1150 nm ≤ 5.5 mm |
| Spatial Mode Quality (M²) | ≤ 1.2 |
| Cooling | Thermoelectric cooler + air cooling |
| Power Requirements | 110–220 V / 50–60 Hz |
| Operating Temperature | 20–30 ºC |
| Storage Temperature | 0–60 ºC |
| Dimensions (W × D × H) | 436 × 560 × 151 mm |
| Control | Manual / Software via USB |
| Safety Connections | Interlock / Key |

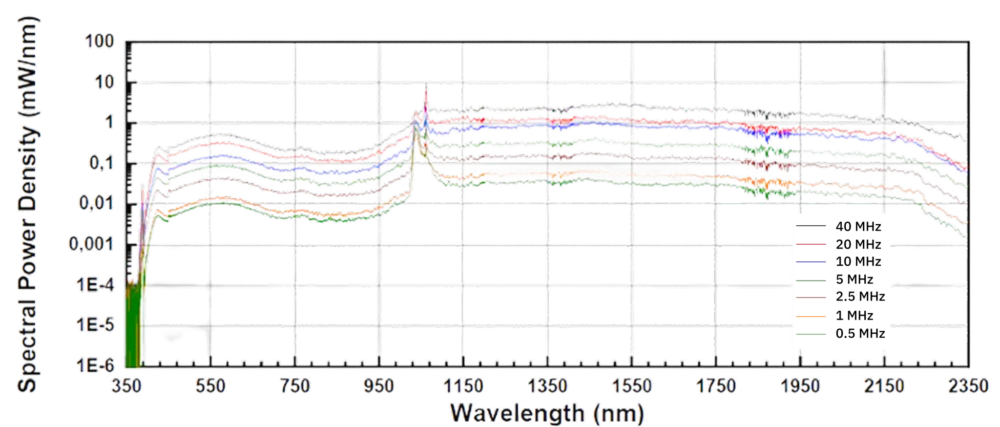

| Optical Spectrum | Spectral Power Density Iceblink with variable frequency |
| Security | Class 4 laser — appropriate safety measures required |
| Additional Info | Spectral profile and detailed specs under request |
| Footnotes | *Customizable **Other values under request ***Minimum frequency ****Estimated value |
