LDM-XT Series Laser diodes modules
The LASOS® LDM-XT laser series is the latest generation of laser diode modules designed to fulfil specific customer’s needs for a particular application. Its modular concept allows adapting different requirements regarding optical and electronical properties. Whether it is delivered as an OEM component for instrumentation or for stand alone applications in science or research.
Description
The LASOS® LDM-XT laser series is the latest generation of laser diode modules designed to fulfil specific customer’s needs for a particular application. Its modular concept allows adapting different requirements regarding optical and electronical properties. Whether it is delivered as an OEM component for instrumentation or for stand alone applications in science or research. The customer

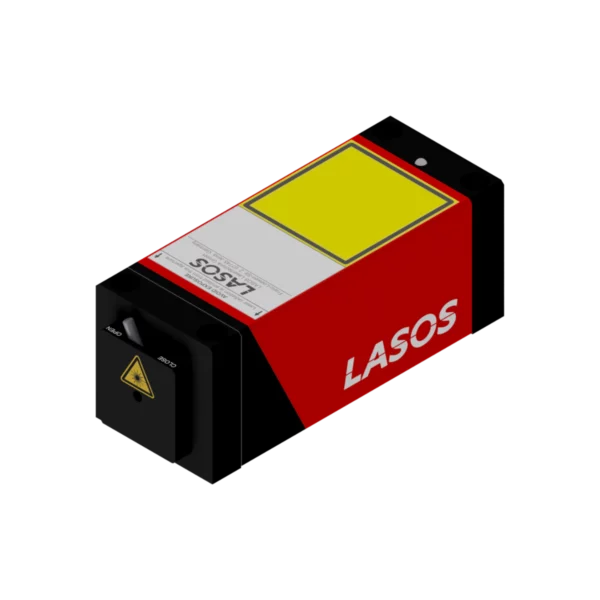

has the choice between several options which ensure always the best price-performance ratio. With its compact and robust housing, easy setup and intelligent control the LASOS® LDM-XT laser series is the ideal choice when reliability and accuracy matter.

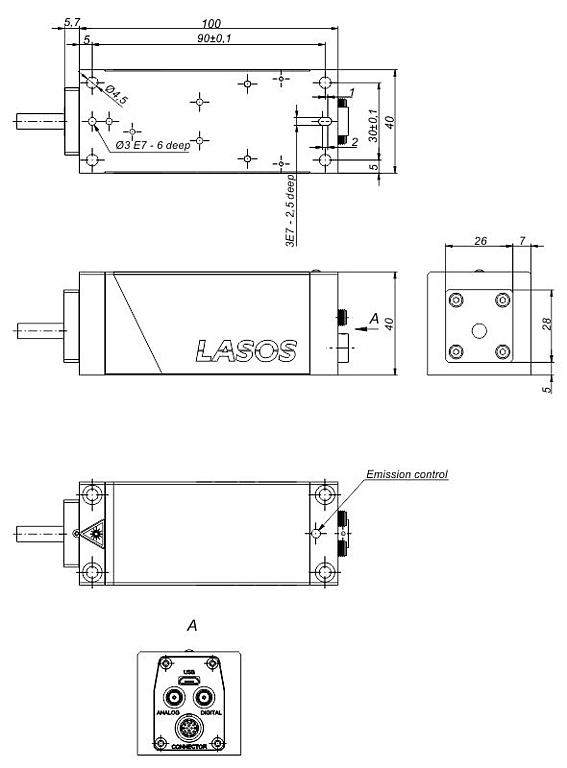

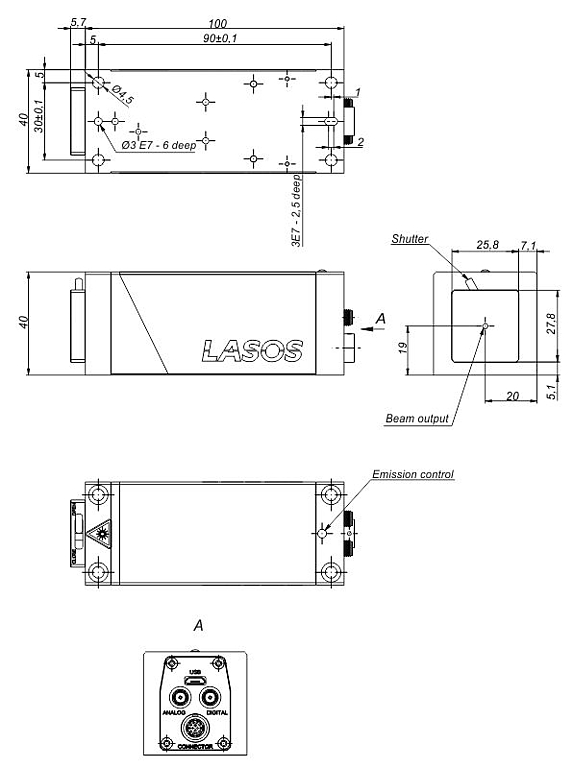

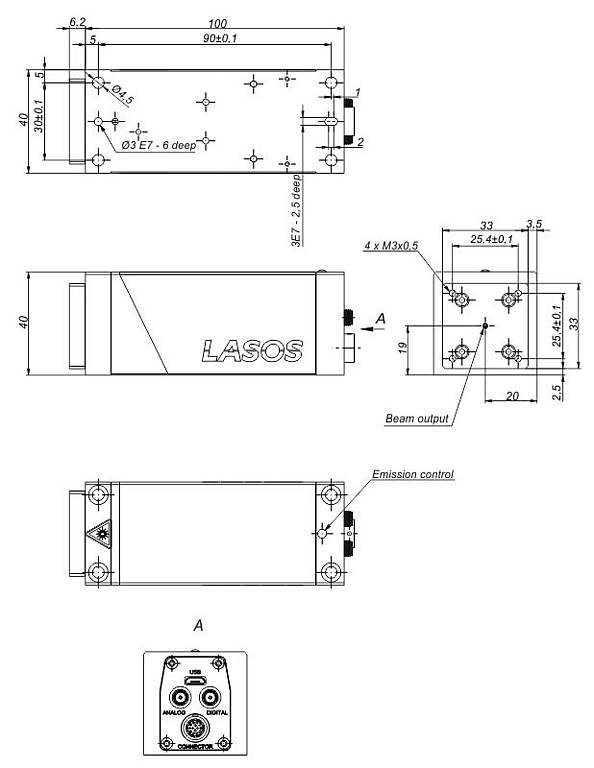

The laser diode modules are available in a free beam version or with a permanently aligned coupling into a single mode polarization maintaining fiber. The fiber patchcord can be designed by the customer choosing from various options regarding jacket and connectors. Additionally, the customer can choose from a range of opto-mechanical components like precision fiber plugs and sockets for adjustment free docking to an instrument or beam combining to transfer several beams into one collinear beam or (one) fiber.
- Designed to fulfill specific customer’s needs
- Modular concept
- Compact and robust housing
- Best price-performance ratio
Fields of Application
Based on the features the new LASOS LDM-XT series is the best choice for:
- Microscopy
- DNA Sequencing
- Holography
- Flow Cytometry
Specifications
| Wavelength [nm] | Model key | Max. output power free beam [mW] | Standard output power fiber coupled [mW] | High efficiency output power fiber coupled [mW] |
|---|---|---|---|---|
| 375 | DLD-XT 375 | 50 | n/a | n/a |
| 395 | DLD-XT 395 | 100 | 40 | 60 |
| 405 | VLD-XT 405 | 250 | 60 | 150 |
| 415 | VLD-XT 415 | 100 | 40 | 60 |
| 425 | VLD-XT 425 | 100 | 40 | 60 |
| 445 | VLD-XT 445 | 80 | 30 | 50 |
| 457 | BLD-XT 457 | 80 | 30 | 50 |
| 473 | BLD-XT 473 | 80 | 30 | 50 |
| 488 | BLD-XT 488 | 160 | 65 | 100 |
| 505 | GLD-XT 505 | 65 | 25 | 40 |
| 515 | GLD-XT 515 | 65 | 25 | 40 |
| 520 | GLD-XT 520 | 40 | 15 | 25 |
| 633 | RLD-XT 633 | 85 | 35 | 50 |
| 638 | RLD-XT 638 | 170 | 70 | 100 |
| 660 | RLD-XT 660 | 100 | 40 | 60 |
| 685 | RLD-XT 685 | 40 | 15 | 25 |
| 705 | SLD-XT 705 | 35 | 15 | 20 |
| 730 | SLD-XT 730 | 35 | 15 | 20 |
| 785 | SLD-XT 785 | 170 | 70 | 100 |
| 808 | TLD-XT 808 | 120 | 50 | 70 |
| 830 | TLD-XT 830 | 220 | 90 | 130 |
