Neospectra FT-NIR Handscanner Spectrometer

Instant Lab-Level Results, at the point of need!
Most Accurate, Versatile, and Cost-Effective Handheld Fourier Transform Near Infrared (FT-NIR) Spectrometer For On-Site Sample Analysis

Description

NeoSpectra Scanner operates on the same principles as a laboratory FT-NIR spectrometer but in a compact portable form thanks to our patented. It uses Near Infrared (NIR) light, which is invisible to the human eye, to analyze materials based on their unique spectral response. This provides invaluable insights into a material’s chemical and nutritional composition, allowing for quick and informed decision-making.

Markets:

  • Animal Nutrition, Feed Mills, Feed enterprices, Feed Labs
  • Medical Cannabis, Growers, Breeders, Labs
  • Polymers
  • Pet Food
  • Soil
  • Dairy Powder
  • Four And Milling

Specifications

Specifications

Wavelength Range 1,350 – 2,500 nm (7,400 – 4,000 cm-1 )
Typical SNR (rms) 2,000:1
Resolution 16 nm (66.6 cm-1)
Sample coverage ~ 0.4 inch (~10 mm)
Dimensions 7 x 3.6 x 2.5 inch (178 x 91 x 62 mm)
Weight 2.2 lbs (1 kg)
Operating Temperature 23 : 104 oF (-5 : 40 oC)
Ingress Protection Rating IP65
Battery Type Two rechargeable 18650 batteries, user replaceable
Operating Battery Life 800 scans
Battery Charge Time 6 hours on fast charging to reach 100%
Bulb Lifetime > 10,000 hrs.
Wireless Connectivity Bluetooth V4.2 BLE
Charging Port USB-C

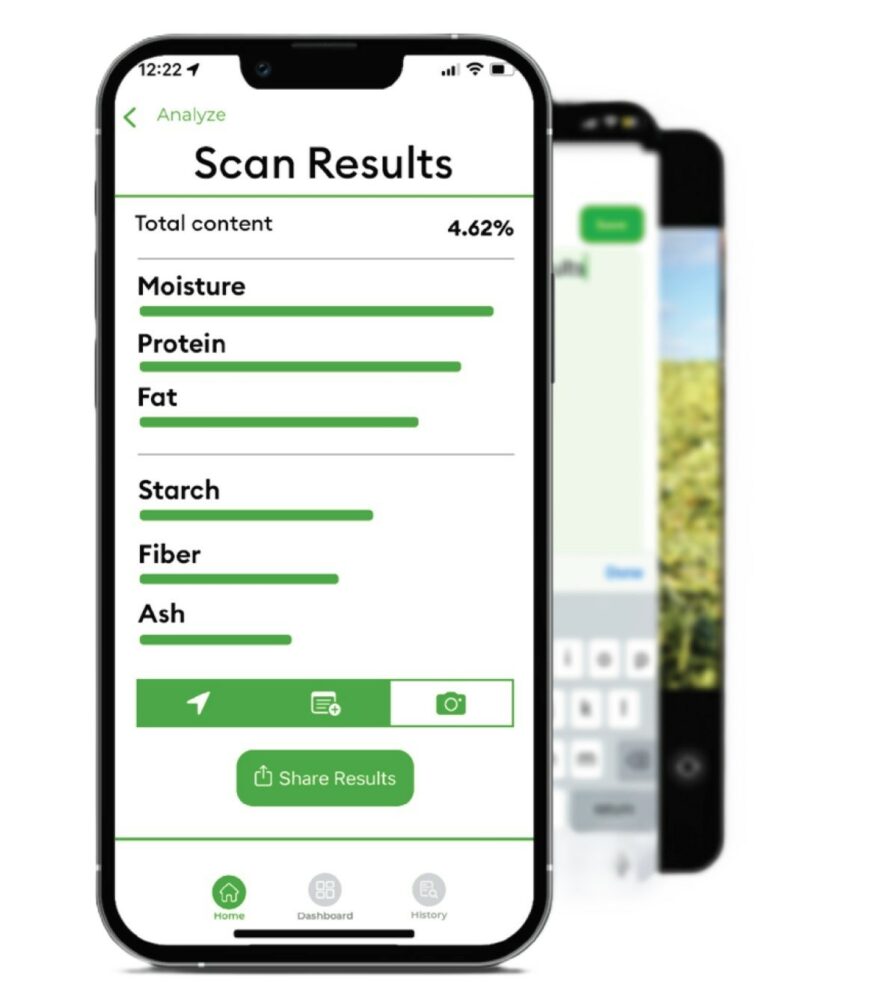

Software Operation via NeoSpectra mobile applications for spectral data collection, and material analysis
