SCION 1280 VIS-SWIR Camera

Description

SCION 1280 VIS–SWIR Camera

The SCION 1280 is a high‑resolution VIS–SWIR camera designed for applications requiring a larger field of view and increased spatial detail while maintaining excellent sensitivity. Featuring a 1280 × 1024 pixel VisGaAs sensor with 10 µm pixel pitch, the SCION 1280 delivers broadband sensitivity across the visible to short‑wave infrared spectrum, enabling precise imaging from approximately 0.4 to 1.7 µm.

Integrated high‑performance thermoelectric cooling reduces noise and ensures stable operation, even during long integration times. Advanced non‑destructive readout modes further enhance signal‑to‑noise performance, allowing accurate detection of weak signals. With its compact form factor and optimized frame‑rate capability, the SCION 1280 is well suited for hyperspectral imaging, semiconductor inspection, life‑science imaging, earth observation, and advanced scientific research applications.

Key Specifications

• Sensor format: 1280 × 1024 array with 10 µm pixel pitch
• Spectral range: Broadband VIS–SWIR sensitivity from approximately 0.4 to 1.7 µm using VisGaAs sensor technology
• Cooling: Integrated high‑performance thermoelectric cooling for low‑noise, stable operation

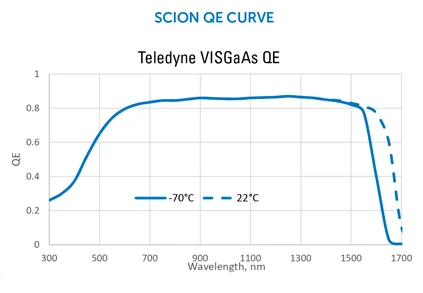

• Sensitivity: High broadband quantum efficiency (up to ~85%, sensor‑dependent)
• Frame rate: Up to 175 fps at full frame, higher rates with windowing
• Readout modes: Advanced non‑destructive readout and sample‑up‑the‑ramp (SUPR) capability
• Integration: Compact housing with optional board‑level configuration; compatible with PICAM SDK and LightField software
