SH6-Series High Speed Camera
Ultra-clear and high-quality color image, up to 5 million pixels, rich ISP processing, highly integrated internal system, fully considering EMC electromagnetic compatibility, meeting military level standards in external strong interference environments.
Description

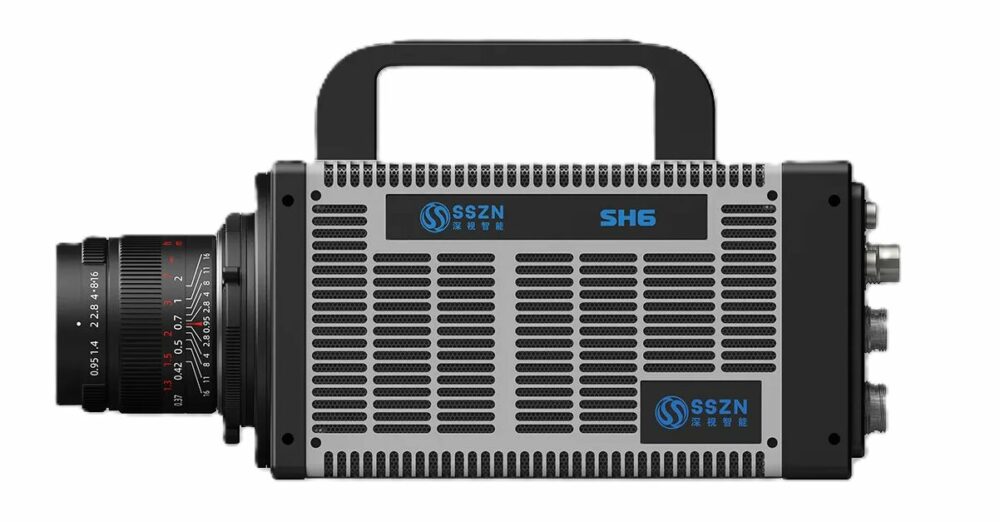

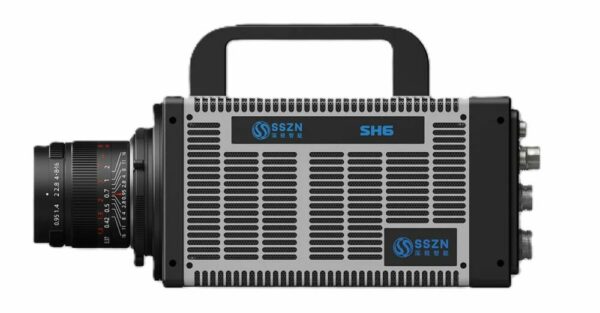

SH6-802 is a full-featured high-speed camera created by Deep Vision Intelligence for high-end scientific research, national defense, aerospace, high-speed industry and other fields.
It adopts a special custom sensor, unique circuit design to make it have 160Gbps effective bandwidth and excellent imaging quality.
At the same time, it has a wealth of extensible interfaces, so that high-speed imaging applications have more possibilities.
Specifications
Technical specifications
| performance | |||||||
| Resolution | Frame rate | Record time (memory) | Record time (hard disk) | ||||
| 40GB | 80GB | 160GB | 4TB | 12TB | 24TB | ||
| 4096 x 2048 | 2000FPS | 2.5 (s) | 5.1 (s) | 10.2 (s) | 4.2 (min) | 12.8 (min) | 25.6 (min) |
| 4096 x 1536 | 2500FPS | 2.7 (s) | 5.4 (s) | 10.9 (s) | 4.5 (min) | 13.6 (min) | 27.3 (min) |
| 4096 x 1024 | 3800FPS | 2.6 (s) | 5.3 (s) | 10.7 (s) | 4.4 (min) | 13.4 (min) | 26.9 (min) |
| 4096 x 832 | 4300FPS | 2.9 (s) | 5.8 (s) | 11.7 (s) | 4.8 (min) | 14.6 (min) | 29.3 (min) |
| 4096×512 | 6900FPS | 2.9 (s) | 5.9 (s) | 11.8 (s) | 4.9 (min) | 14.8 (min) | 29.6 (min) |
| 4096×256 | 11500FPS | 3.5 (s) | 7.1 (s) | 14.2 (s) | 5.9 (min) | 17.8 (min) | 35.6 (min) |
| 4096×128 | 17000FPS | 4.8 (s) | 9.6 (s) | 19.2 (s) | 8 (min) | 24 (min) | 48.1 (min) |
| 4096×64 | 20000FPS | 8.1 (s) | 16.3 (s) | 32.7 (s) | 13.6 (min) | 40.9 (min) | 81.9 (min) |
| specification | |||
| Model number | TYPE | SH6-802 | |
| Maximum resolution | Full Resolution | 4096 x 2048 | |
| Full shot speed | Full Frame Rate | 2000fps | |
| Maximum shooting speed | Maximum Frame Rate | 20000fp | |
| Minimum exposure time | Minimum Exposure Time | 1 μs | |
| Pixel size | Pixel Size | 4.5μs | |
| Standard memory | Standard RAM | 40GB, 80GB, 160GB, 320GB are optional | |
| Extended memory | Extended Memor | 4T, 12T, and 24T are optional | |
| Dynamic range | Dynamic Range | 60dB | |
| Analog Gain | Analog Gain | ×2、×4、×8 | |
| Bit Resolution | Bit Resolution | 8bit | |
| Shutte Mode | Shutte Mode | Global shutter | |
| Color | Color | Monochrome (M)/Colorful (C) | |
| ROI | ROI | Support | |
| Lens Mount | Lens Mount | E interface, can be connected to F interface, C interface, EF interface | |
| Data Interface | Data Interface | 10 Gigabit Ethernet, Adaptive Gigabit Ethernet | |
| Sensitivity | Sensitivity | ISO10000(M)；ISO3000(C) | |
| Fan Control | Fan Control | Supports on/off, adaptive speed based on temperature | |
| Operating Temperature/Humidity | Operating Temperature/Humidity | Standard -10~50 ℃, below 95% (without condensation), customizable -35~65 ℃ wide temperature version | |
| Video Signal Output | Video Signal Output | SDI, Ethernet | |
| Recording Mode | Recording Mode | Start, End, Center, Random, Manual | |
| Trigger Mode | Trigger Mode | Manual, IO, Image | |

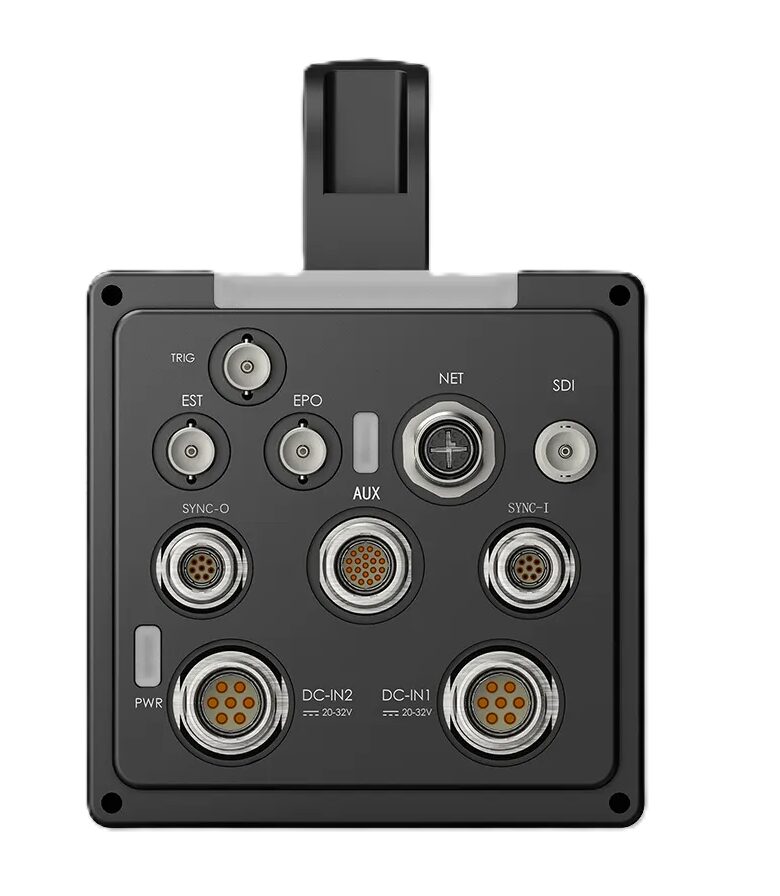

| External Signal | External Signal | Input: trigger (TTL/switch) signal, synchronization signal, ready signal, event signal, IRIGB code signal Output: trigger (TTL/switch) signal, synchronization signal, ready signal, exposure signal, recording signal |
|
| Power Supply | Power Supply | Dual power supply, DC24V | |
| Dimensions (excluding lens) | Dimensions (excluding lens) | 217D × 110W × 110H, excluding raised parts | |
| Weight | Weight | 3.8kg | |
| Power Consumption | Power Consumption | 55W | |
| Standard Accessories | Standard Accessories | Power cord × 1. AC adapter × 1. Network cable × 1. Camera control software × 1. User manual × 1. Factory certificate of conformity × one | |
