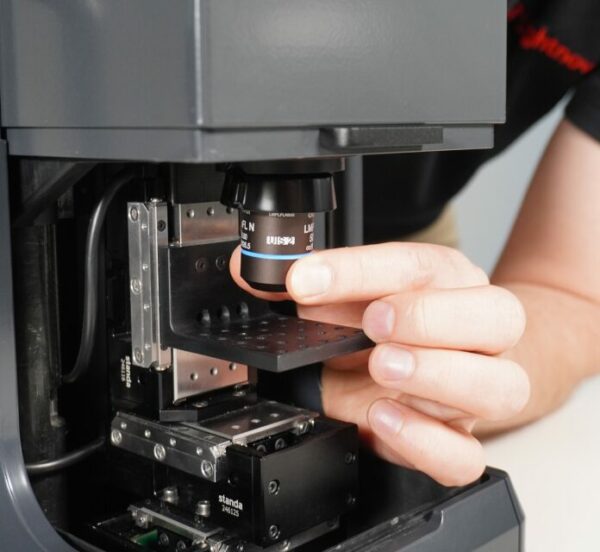

The world’s smallest confocal and modular Raman microscope

The miniRaman microscope is an innovative confocal equipment based on the miniRaman spectrometer, with a patented, integrated reference channel.

This innovative technology ensures automatic calibration by correcting for laser wavelength drift delivering accurate and reliable results.

Due to the unique, patented technology miniRaman microscope has very high throughput, perfect wavenumber accuracy and Raman intensity calibration via in-build reference channel.

Category:

Description

Unique Technology

The miniRaman microscope is an innovative confocal equipment based on the miniRaman spectrometer, with a patented, integrated reference channel. This innovative technology ensures automatic calibration by correcting for laser wavelength drift delivering accurate and reliable results. Due to the unique, patented technology miniRaman microscope has very high throughput, perfect wavenumber accuracy and Raman intensity calibration via in-build reference channel.

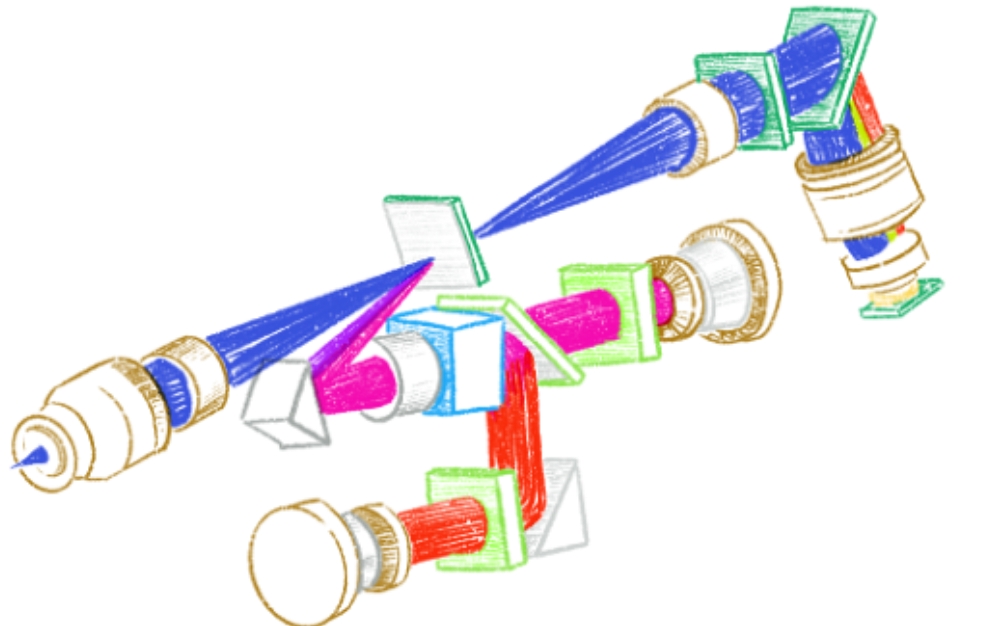

Optical schema of miniRaman MRs. See details for miniRaman MRs patent here!

Applications:

For researchers, industries, universities

Life Sciences & Health

Biosciences, pharmaceuticals,
skin diagnostics, cosmetics

Materials & Nanotechnology

Polymers, nano-materials, semiconductors,
Surface Enhanced Raman Scattering (SERS)

Industrial & Chemical Analysis

Chemicals, geology, forensics,
metallurgy, and food safety

Quality Control & Authentication

Alcohol quality,
counterfeit product detection

Specifications

Technical Specifications

Feature versus model miniRaman microscopy platform motorized miniRaman microscopy platform manual miniRaman microscopy platform focusing stage
Compatible spectrometers miniRaman spectrometers miniRaman Pro spectrometers
Lateral resolution* 800 – 900 nm
Axial resolution or confocality* 2.5 – 3 μm
White light microscopy Reflected with simultaneous visualization of laser spot and Raman acquisition Not included
Microscopy configuration up-right and inverted
Mapping travel range in XYZ 30 x 30 x 30 mm 10 x 10 x 13 mm
Minimum step size 500 nm 5 µm

** Resolution depends on the laser wavelength and spectrometer used. Values represent the use of miniRaman spectrometers, all wavelengths with microscope objective NA = 0.95, 100x magnification.
