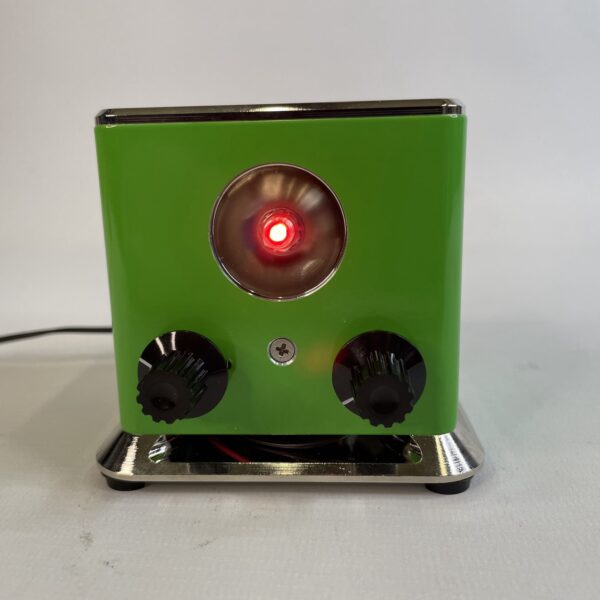

Ultra LED Light Source (LLS)

The LLS Series LED Light Source, formally supplied by Ocean Inside, Ocean Optics and Sandhouse
LLC are now available through Te Lintelo Systems as they are not available any more through the
former suppliers.

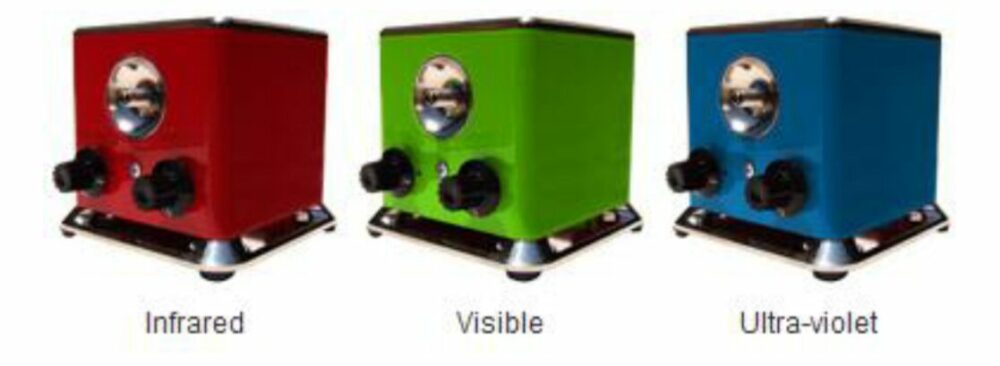

Introducing the ergonomic and intelligently designed, Ultra LED product line of fiber optic light sources. These fiber coupled LED sources are ideal for fluorescence, spectroscopy and general fiber illumination applications.

Description

Introducing the ergonomic and intelligently designed, Ultra LED product line of fiber optic light sources. These fiber coupled LED sources are ideal for fluorescence, spectroscopy and general fiber illumination applications. The “Ultra LED” high power light sources can be operated in “continuous: (CW) or “external trigger” modes. An innovative optical design enables these fiber coupled light sources to provide highly efficient light coupling into a single fiber optic. The proprietary electronics design provides stable high current operation and allows the LEDs to run at higher peak currents when in external trigger mode.

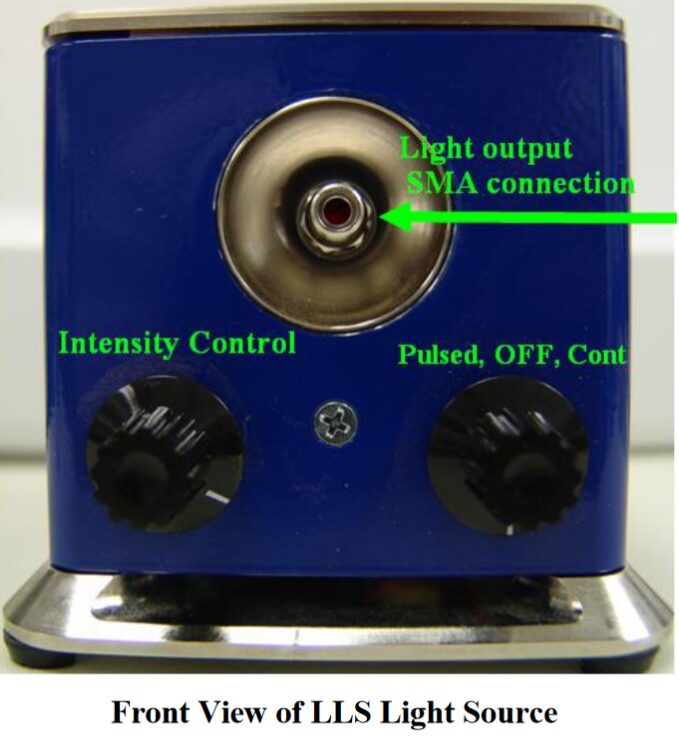

The controls feature a three way switch to move the light source between continuous, off and trigger modes. A second control is used to manually adjust the drive current. A 15 pin interface connector provides access to TTL input controls, onboard memory and intensity modulation, making this source ideal for OEM integration. An optional USB controller is available to control the drive current, pulse width and pulse frequency via PC interface.

Do you need an LED that you do not see listed here? Let us know and we will evaluate coupling and controlling it for you.

Do you need multiple LED wavelengths in a single fiber? Try our fiber couplers. They offer close to 50/50 coupling from each channel. This is superior performance over standard bifurcated type fiber assemblies that can typically only provide 25% coupling efficiency from each channel.

Specifications







Part #







Wavelength







FWHM

Min Power coupled into

a 600um fiber



Maximum Drive Current CW

Maximum Drive

Current Pulsed

Maximum duty Cycle

in pulsed mode

LLS-250 250nm 12nm 200μW 30mA 200mA 1%*
LLS-270 270nm 12nm 200μW 30mA 200mA 1%*
LLS-290 290nm 12nm 200μW 30mA 200mA 1%*
LLS-310 310nm 12nm 200μW 30mA 200mA 1%*
LLS-325 325nm 12nm 200μW 30mA 200mA 1%*
LLS-345 345nm 12nm 200μW 30mA 200mA 1%*
LLS-365 365nm 9nm 5mW 500mA 1000mA 50%
LLS-455 455 nm 20nm 10mw 1500ma 3000mA 50%
LLS-470 470 nm 25nm 10mw 1500ma 3000mA 50%
LLS-505 505 nm 30nm 10mw 1500ma 3000mA 50%
LLS-530 530 nm 35nm 10mw 1500ma 3000mA 50%
LLS-590 590 nm 14nm 10mw 1500ma 1400mA 50%
LLS-617 617 nm 20nm 10mw 700mA 1400mA 50%
LLS-627 627 nm 20nm 10mw 700mA 1400mA 50%


LLS-VIS

VIS 6500K

CCT



n/a



10mw



1500ma



3000mA



50%
