Bandpass filters
Our partner Andover Corporation can fabricate and deliver higher performance commercial quality bandpass filters to your specifications as soon as 5-10 days from receipt of order.
Description
There are a number of variations of an optical bandpass filter’s construction, and each has its advantages. We offer a variety of options so that you can select the best-suited filter type for your application. The table below summarizes the major features of the various types of filters listed above, to aid in quickly locating the type that is best suited for your application. If you would like advice from our technical sales staff, please contact us.
Band-pass filters only transmit a certain wavelength band and block others. The width of such a filter is expressed in the wavelength range it lets through, and can be anything from much less than an Ångström to a few hundred nanometers. Such a filter can be made by combining an LP and an SP filter.
Bandpass filters are defined by three critical features: Center Wavelength (CWL)—the wavelength at the center of the passband. Full Width at Half Maximum (FWHM)—the bandwidth at 50% of the maximum transmission. Peak Transmission (T)—the wavelength of maximum transmission
Features
Optical bandpass filters are designed to transmit a well-defined band of energy in the electromagnetic spectrum. Andover offers one of the most extensive listings of standard “off-the-shelf” optical filters in this industry. Wavelengths range from 193nm in the ultraviolet through the near-infrared and include many of the primary laser, mercury, biomedical and analytical spectral lines. All UV filter glass is overcoated with a hard oxide protective layer to prevent degradation in harsh environments. Standard sizes include 12.5mm Ø, 25.0mm Ø, and 50.0mm Ø. All Andover optical filters are mounted in black anodized metal rings which provide an added measure of protection against chipping, scratching, and high humidity conditions. In addition, all-optical filters have their part number permanently engraved on their edge and each filter is supplied with a calibrated spectral bandpass data curve at no charge. Custom spectral data is available and will be quoted upon request. Custom shapes and sizes are readily available.
Specifications
| Diameter Tolerance | +0/-0.25 mm | |
| Filter Size (O.D./C.A.) | 12.5 mm Ø
25.0 mm Ø 50.0 mm Ø |
9.0 mm Ø
21.0 mm Ø 45.0 mm Ø |
| Surface Quality | 80-50 (Per MIL-PRF-13830B) | |
| Optical Quality | Commercial instrumentation grade | |
| Out-of-Band Blocking | 1 x 10-4 avg. from X-ray to FIR | |
| Specification Temperature | +23 ºC | |
| Max. Survival Temp Range | CW/L 214-380 nm -50 ºC to +50 ºC | CW/L 380.1-2400 nm -50 ºC to +70 ºC |
| Humidity Resistance | Per MIL-C-48497A | |

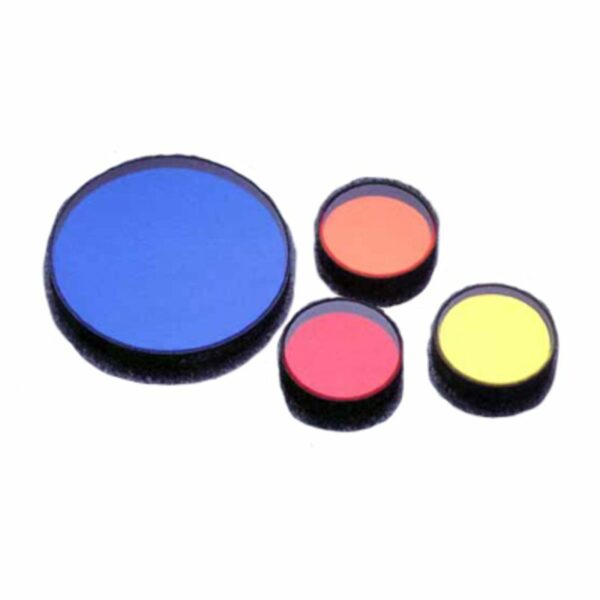

| Mechanical | Mounted in an anodized aluminum ring | |
Catalog - Items
| Line | CWL (nm) | FWHM (nm) | Cavities/ Filter Type | Min. T (%) | n* | Nominal Thickness (mm) | Part Number 12.5 mm | Part Number 25 mm | Part Number 50 mm |
| – | 193.0±2.5 | 15±3 | MDM/7 | 12 | – | 4.0 | 193FS15 – 12.5 | 193FS15 – 25 | 193FS15 – 50 |
| – | 200.0+3/-0 | 10±2 | MDM/7 | 12 | – | 4.0 | 200FS10 – 12.5 | 200FS10 – 25 | 200FS10 – 50 |
| – | 220.0+3/-0 | 10±2 | MDM/7 | 12 | – | 4.0 | 220FS10 – 12.5 | 220FS10 – 25 | 220FS10 – 50 |
| – | 260.0+3/-0 | 10±2 | MDM/7 | 12 | – | 4.0 | 260FS10 – 12.5 | 260FS10 – 25 | 260FS10 – 50 |
| – | 300.0+3/-0 | 10±2 | MDM/7 | 15 | – | 4.0 | 300FS10 – 12.5 | 300FS10 – 25 | 300FS10 – 50 |
| – | 300.0±3 | 25±5 | MDM/8 | 20 | – | 4.0 | 300FS25 – 12.5 | 300FS25 – 25 | 300FS25 – 50 |
| – | 300.0+10/-0 | 40±8 | MDM/9 | 20 | – | 4.0 | 300FS40 – 12.5 | 300FS40 – 25 | 300FS40 – 50 |
| – | 310.0+3/-0 | 10±2 | MDM/7 | 15 | – | 4.0 | 310FS10 – 12.5 | 310FS10 – 25 | 310FS10 – 50 |
| – | 320.0+3/-0 | 10±2 | 3/3 | 25 | 1.45 | 8.0 | 320FS10 – 12.5 | 320FS10 – 25 | 320FS10 – 50 |
| – | 330.0+3/-0 | 10±2 | 3/3 | 25 | 1.45 | 8.0 | 330FS10 – 12.5 | 330FS10 – 25 | 330FS10 – 50 |
| – | 350.0±3 | 25±5 | 3/3 | 25 | 1.45 | 7.0 | 350FS25 – 12.5 | 350FS25 – 25 | 350FS25 – 50 |
| – | 350.0+10/-0 | 40±8 | 3/3 | 25 | 1.45 | 7.0 | 350FS40 – 12.5 | 350FS40 – 25 | 350FS40 – 50 |
| – | 355.0+2/-0 | 10±2 | 3/3 | 25 | 1.45 | 7.0 | 355FS10 – 12.5 | 355FS10 – 25 | 355FS10 – 50 |
| – | 360.0+3/-0 | 10±2 | 3/3 | 25 | 1.45 | 7.0 | 360FS10 – 12.5 | 360FS10 – 25 | 360FS10 – 50 |
| – | 380.0+3/-0 | 10±2 | 3/3 | 25 | 1.45 | 7.0 | 380FS10 – 12.5 | 380FS10 – 25 | 380FS10 – 50 |
| – | 390.0+3/-0 | 10±2 | 3/3 | 35 | 1.45 | 7.0 | 390FS10 – 12.5 | 390FS10 – 25 | 390FS10 – 50 |
| – | 400.0+3/-0 | 10±2 | 3/3 | 45 | 1.45 | 7.0 | 400FS10 – 12.5 | 400FS10 – 25 | 400FS10 – 50 |
| – | 400.0±2 | 20±4 | 3/3 | 45 | 1.45 | 7.0 | 400FS20 – 12.5 | 400FS20 – 25 | 400FS20 – 50 |
| – | 400.0+10/-0 | 40±8 | 3/3 | 45 | 1.45 | 7.0 | 400FS40 – 12.5 | 400FS40 – 25 | 400FS40 – 50 |
| – | 400.0+25/-0 | 70±16 | MDM/10 | 60 | – | 7.0 | 400FS70 – 12.5 | 400FS70 – 25 | 400FS70 – 50 |
| – | 410.0+3/-0 | 10±2 | 3/3 | 45 | 1.45 | 7.0 | 410FS10 – 12.5 | 410FS10 – 25 | 410FS10 – 50 |
| – | 415.0+2/-0 | 10±2 | 3/3 | 45 | 1.45 | 7.0 | 415FS10 – 12.5 | 415FS10 – 25 | 415FS10 – 50 |
| – | 420.0+3/-0 | 10±2 | 3/3 | 45 | 1.45 | 7.0 | 420FS10 – 12.5 | 420FS10 – 25 | 420FS10 – 50 |
| – | 430.0+3/-0 | 10±2 | 3/3 | 45 | 1.45 | 7.0 | 430FS10 – 12.5 | 430FS10 – 25 | 430FS10 – 50 |
| – | 440.0+3/-0 | 10±2 | 3/3 | 45 | 1.45 | 7.0 | 440FS10 – 12.5 | 440FS10 – 25 | 440FS10 – 50 |
| – | 450.0+3/-0 | 10±2 | 3/3 | 45 | 1.45 | 7.0 | 450FS10 – 12.5 | 450FS10 – 25 | 450FS10 – 50 |
| – | 450.0±2 | 20±4 | 3/3 | 55 | 1.45 | 7.0 | 450FS20 – 12.5 | 450FS20 – 25 | 450FS20 – 50 |
| – | 450.0+10/-0 | 40±8 | 3/3 | 55 | 1.45 | 7.0 | 450FS40 – 12.5 | 450FS40 – 25 | 450FS40 – 50 |
| – | 450.0+20/-10 | 80±16 | MDM/9 | 65 | – | 7.0 | 450FS80 – 12.5 | 450FS80 – 25 | 450FS80 – 50 |
| – | 460.0+3/-0 | 10±2 | 3/3 | 50 | 1.45 | 7.0 | 460FS10 – 12.5 | 460FS10 – 25 | 460FS10 – 50 |
| – | 470.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 470FS10 – 12.5 | 470FS10 – 25 | 470FS10 – 50 |
| – | 480.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 480FS10 – 12.5 | 480FS10 – 25 | 480FS10 – 50 |
| – | 490.0+3/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 490FS10 – 12.5 | 490FS10 – 25 | 490FS10 – 50 |
| – | 500.0+3/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 500FS10 – 12.5 | 500FS10 – 25 | 500FS10 – 50 |
| – | 500.0±2 | 20±4 | 3/3 | 55 | 2.05 | 7.0 | 500FS20 – 12.5 | 500FS20 – 25 | 500FS20 – 50 |
| – | 500.0+10/-0 | 40±8 | 3/3 | 55 | 2.05 | 7.0 | 500FS40 – 12.5 | 500FS40 – 25 | 500FS40 – 50 |
| – | 500.0+20/-10 | 80±16 | MDM/9 | 70 | – | 7.0 | 500FS80 – 12.5 | 500FS80 – 25 | 500FS80 – 50 |
| – | 510.0+3/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 510FS10 – 12.5 | 510FS10 – 25 | 510FS10 – 50 |
| – | 520.0+3/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 520FS10 – 12.5 | 520FS10 – 25 | 520FS10 – 50 |
| – | 523.0+2/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 523FS10 – 12.5 | 523FS10 – 25 | 523FS10 – 50 |
| – | 530.0+3/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 530FS10 – 12.5 | 530FS10 – 25 | 530FS10 – 50 |
| – | 540.0+3/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 540FS10 – 12.5 | 540FS10 – 25 | 540FS10 – 50 |
| – | 543.5+2/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 544FS10 – 12.5 | 544FS10 – 25 | 544FS10 – 50 |
| – | 550.0+3/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 550FS10 – 12.5 | 550FS10 – 25 | 550FS10 – 50 |
| – | 550.0±2 | 20±4 | 3/3 | 55 | 1.45 | 7.0 | 550FS20 – 12.5 | 550FS20 – 25 | 550FS20 – 50 |
| – | 550.0+10/-0 | 40±8 | 3/3 | 55 | 2.05 | 7.0 | 550FS40 – 12.5 | 550FS40 – 25 | 550FS40 – 50 |
| – | 550.0+20/-10 | 80±16 | MDM/9 | 70 | – | 7.0 | 550FS80 – 12.5 | 550FS80 – 25 | 550FS80 – 50 |
| – | 560.0+3/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 560FS10 – 12.5 | 560FS10 – 25 | 560FS10 – 50 |
| – | 570.0+3/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 570FS10 – 12.5 | 570FS10 – 25 | 570FS10 – 50 |
| – | 580.0+3/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 580FS10 – 12.5 | 580FS10 – 25 | 580FS10 – 50 |
| – | 590.0+3/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 590FS10 – 12.5 | 590FS10 – 25 | 590FS10 – 50 |
| – | 600.0+3/-0 | 10±2 | 2/2 | 55 | 2.05 | 7.0 | 600FS10 – 12.5 | 600FS10 – 25 | 600FS10 – 50 |
| – | 600.0±2 | 20±4 | 2/2 | 55 | 1.45 | 7.0 | 600FS20 – 12.5 | 600FS20 – 25 | 600FS20 – 50 |
| – | 600.0+10/-0 | 40±8 | 3/3 | 55 | 2.05 | 7.0 | 600FS40 – 12.5 | 600FS40 – 25 | 600FS40 – 50 |
| – | 600.0+20/-10 | 80±16 | MDM/9 | 70 | – | 7.0 | 600FS80 – 12.5 | 600FS80 – 25 | 600FS80 – 50 |
| – | 610.0+3/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 610FS10 – 12.5 | 610FS10 – 25 | 610FS10 – 50 |
| – | 620.0+3/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 620FS10 – 12.5 | 620FS10 – 25 | 620FS10 – 50 |
| – | 630.0+3/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 630FS10 – 12.5 | 630FS10 – 25 | 630FS10 – 50 |
| – | 640.0+3/-0 | 10±2 | 3/3 | 60 | 2.05 | 7.0 | 640FS10 – 12.5 | 640FS10 – 25 | 640FS10 – 50 |
| – | 650.0+3/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 650FS10 – 12.5 | 650FS10 – 25 | 650FS10 – 50 |
| – | 650.0±2 | 20±4 | 3/3 | 55 | 2.05 | 7.0 | 650FS20 – 12.5 | 650FS20 – 25 | 650FS20 – 50 |
| – | 650.0+10/-0 | 40±8 | 3/3 | 50 | 2.05 | 7.0 | 650FS40 – 12.5 | 650FS40 – 25 | 650FS40 – 50 |
| – | 650.0+20/-10 | 80±16 | MDM/9 | 70 | – | 7.0 | 650FS80 – 12.5 | 650FS80 – 25 | 650FS80 – 50 |
| – | 660.0+3/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 660FS10 – 12.5 | 660FS10 – 25 | 660FS10 – 50 |
| – | 675.8+2/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 675FS10 – 12.5 | 675FS10 – 25 | 675FS10 – 50 |
| – | 675.0±2 | 20±4 | 3/3 | 55 | 2.05 | 7.0 | 675FS20 – 12.5 | 675FS20 – 25 | 675FS20 – 50 |
| – | 680.0+3/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 680FS10 – 12.5 | 680FS10 – 25 | 680FS10 – 50 |
| – | 690.0+3/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 690FS10 – 12.5 | 690FS10 – 25 | 690FS10 – 50 |
| – | 700.0+3/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 700FS10 – 12.5 | 700FS10 – 25 | 700FS10 – 50 |
| – | 700.0±2 | 20±4 | 3/3 | 55 | 2.05 | 7.0 | 700FS20 – 12.5 | 700FS20 – 25 | 700FS20 – 50 |
| – | 700.0+10/-0 | 40±8 | 3/3 | 50 | 2.05 | 7.0 | 700FS40 – 12.5 | 700FS40 – 25 | 700FS40 – 50 |
| – | 700.0+20/-10 | 80±16 | MDM/9 | 65 | – | 7.0 | 700FS80 – 12.5 | 700FS80 – 25 | 700FS80 – 50 |
| – | 710.0+3/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 710FS10 – 12.5 | 710FS10 – 25 | 710FS10 – 50 |
| – | 720.0+3/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 720FS10 – 12.5 | 720FS10 – 25 | 720FS10 – 50 |
| – | 730.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 730FS10 – 12.5 | 730FS10 – 25 | 730FS10 – 50 |
| – | 740.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 740FS10 – 12.5 | 740FS10 – 25 | 740FS10 – 50 |
| – | 750.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 750FS10 – 12.5 | 750FS10 – 25 | 750FS10 – 50 |
| – | 750.0±2 | 20±4 | 3/3 | 50 | 2.05 | 7.0 | 750FS20 – 12.5 | 750FS20 – 25 | 750FS20 – 50 |
| – | 750.0+10/-0 | 40±8 | 3/3 | 40 | 2.05 | 7.0 | 750FS40 – 12.5 | 750FS40 – 25 | 750FS40 – 50 |
| – | 750.0+20/-10 | 100±20 | MDM/9 | 65 | – | 7.0 | 750FS00 – 12.5 | 750FS00 – 25 | 750FS00 – 50 |
| – | 760.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 760FS10 – 12.5 | 760FS10 – 25 | 760FS10 – 50 |
| – | 770.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 770FS10 – 12.5 | 770FS10 – 25 | 770FS10 – 50 |
| – | 790.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 790FS10 – 12.5 | 790FS10 – 25 | 790FS10 – 50 |
| – | 800.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 800FS10 – 12.5 | 800FS10 – 25 | 800FS10 – 50 |
| – | 800.0±2 | 20±4 | 3/3 | 50 | 2.05 | 7.0 | 800FS20 – 12.5 | 800FS20 – 25 | 800FS20 – 50 |
| – | 800.0+10/-0 | 40±8 | 3/3 | 50 | 2.05 | 7.0 | 800FS40 – 12.5 | 800FS40 – 25 | 800FS40 – 50 |
| – | 800.0+20/-10 | 100±20 | MDM/9 | 65 | – | 7.0 | 800FS00 – 12.5 | 800FS00 – 25 | 800FS00 – 50 |
| – | 820.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 820FS10 – 12.5 | 820FS10 – 25 | 820FS10 – 50 |
| – | 840.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 840FS10 – 12.5 | 840FS10 – 25 | 840FS10 – 50 |
| – | 850.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 850FS10 – 12.5 | 850FS10 – 25 | 850FS10 – 50 |
| – | 850.0±2 | 20±4 | 3/3 | 50 | 2.05 | 7.0 | 850FS20 – 12.5 | 850FS20 – 25 | 850FS20 – 50 |
| – | 850.0+10/-0 | 40±8 | 3/3 | 50 | 2.05 | 7.0 | 850FS40 – 12.5 | 850FS40 – 25 | 850FS40 – 50 |
| – | 850.0+20/-10 | 100±20 | MDM/9 | 65 | – | 7.0 | 850FS00 – 12.5 | 850FS00 – 25 | 850FS00 – 50 |
| – | 860.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 860FS10 – 12.5 | 860FS10 – 25 | 860FS10 – 50 |
| – | 870.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 870FS10 – 12.5 | 870FS10 – 25 | 870FS10 – 50 |
| – | 880.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 880FS10 – 12.5 | 880FS10 – 25 | 880FS10 – 50 |
| – | 890.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 890FS10 – 12.5 | 890FS10 – 25 | 890FS10 – 50 |
| – | 900.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 900FS10 – 12.5 | 900FS10 – 25 | 900FS10 – 50 |
| – | 900±2 | 20±4 | 3/3 | 50 | 2.05 | 7.0 | 900FS20 – 12.5 | 900FS20 – 25 | 900FS20 – 50 |
| – | 900.0+10/-0 | 40±8 | 3/3 | 50 | 2.05 | 7.0 | 900FS40 – 12.5 | 900FS40 – 25 | 900FS40 – 50 |
| – | 900.0+20/-10 | 100±20 | MDM/9 | 60 | – | 7.0 | 900FS00 – 12.5 | 900FS00 – 25 | 900FS00 – 50 |
| – | 910.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 910FS10 – 12.5 | 910FS10 – 25 | 910FS10 – 50 |
| – | 920.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 920FS10 – 12.5 | 920FS10 – 25 | 920FS10 – 50 |
| – | 930.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 930FS10 – 12.5 | 930FS10 – 25 | 930FS10 – 50 |
| – | 940.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 940FS10 – 12.5 | 940FS10 – 25 | 940FS10 – 50 |
| – | 950.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 950FS10 – 12.5 | 950FS10 – 25 | 950FS10 – 50 |
| – | 950.0±2 | 20±4 | 3/3 | 50 | 2.05 | 7.0 | 950FS20 – 12.5 | 950FS20 – 25 | 950FS20 – 50 |
| – | 950.0+10/-0 | 40±8 | 3/3 | 50 | 1.45 | 7.0 | 950FS40 – 12.5 | 950FS40 – 25 | 950FS40 – 50 |
| – | 950.0+20/-10 | 100±20 | MDM/9 | 60 | – | 7.0 | 950FS00 – 12.5 | 950FS00 – 25 | 950FS00 – 50 |
| – | 960.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 960FS10 – 12.5 | 960FS10 – 25 | 960FS10 – 50 |
| – | 970.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 970FS10 – 12.5 | 970FS10 – 25 | 970FS10 – 50 |
| – | 980.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 980FS10 – 12.5 | 980FS10 – 25 | 980FS10 – 50 |
| – | 990.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 990FS10 – 12.5 | 990FS10 – 25 | 990FS10 – 50 |
| – | 1000.0+3/-0 | 10±2 | 3/3 | 45 | 2.05 | 8.5 | 100FS10 – 12.5 | 100FS10 – 25 | 100FS10 – 50 |
| – | 1000.0±2 | 20±4 | 3/3 | 45 | 2.05 | 8.5 | 100FS20 – 12.5 | 100FS20 – 25 | 100FS20 – 50 |
| – | 1000.0+10/-0 | 40±8 | 3/3 | 45 | 1.45 | 8.5 | 100FS40 – 12.5 | 100FS40 – 25 | 100FS40 – 50 |
| – | 1000.0+20/-10 | 100±20 | MDM/9 | 60 | – | 8.5 | 100FS00 – 12.5 | 100FS00 – 25 | 100FS00 – 50 |
| – | 1046.0+2/-0 | 10±2 | 3/3 | 45 | 2.05 | 8.5 | 046FS10 – 12.5 | 046FS10 – 25 | 046FS10 – 50 |
| – | 1050.0+3/-0 | 10±2 | 3/3 | 45 | 2.05 | 8.5 | 050FS10 – 12.5 | 050FS10 – 25 | 050FS10 – 50 |
| – | 1100.0+3/-0 | 10±2 | 3/3 | 40 | 2.05 | 8.5 | 110FS10 – 12.5 | 110FS10 – 25 | 110FS10 – 50 |
| – | 1150.0+3/-0 | 10±2 | 3/3 | 40 | 2.05 | 8.5 | 115FS10 – 12.5 | 115FS10 – 25 | 115FS10 – 50 |
| – | 1200.0+3/-0 | 10±2 | 2/2 | 35 | 2.05 | 8.5 | 120FS10 – 12.5 | 120FS10 – 25 | 120FS10 – 50 |
| – | 1250.0+3/-0 | 10±2 | 2/2 | 35 | 2.05 | 8.5 | 125FS10 – 12.5 | 125FS10 – 25 | 125FS10 – 50 |
| – | 1300.0+3/-0 | 10±2 | 2/2 | 35 | 2.05 | 8.5 | 130FS10 – 12.5 | 130FS10 – 25 | 130FS10 – 50 |
| – | 1300.0±3 | 20±5 | 3/3 | 35 | 2.05 | 8.5 | 130FS20 – 12.5 | 130FS20 – 25 | 130FS20 – 50 |
| – | 1350.0+3/-0 | 10±2 | 2/2 | 35 | 2.05 | 8.5 | 135FS10 – 12.5 | 135FS10 – 25 | 135FS10 – 50 |
| – | 1400.0+3/-0 | 10±2 | 2/2 | 30 | 2.05 | 8.5 | 140FS10 – 12.5 | 140FS10 – 25 | 140FS10 – 50 |
| – | 1450.0+3/-0 | 10±2 | 2/2 | 30 | 2.05 | 8.5 | 145FS10 – 12.5 | 145FS10 – 25 | 145FS10 – 50 |
| – | 1500.0+3/-0 | 10±2 | 2/2 | 30 | 2.05 | 8.5 | 150FS10 – 12.5 | 150FS10 – 25 | 150FS10 – 50 |
| – | 1500.0±3 | 20±5 | 3/3 | 30 | 2.05 | 8.5 | 150FS20 – 12.5 | 150FS20 – 25 | 150FS20 – 50 |
| – | 1550.0+3/-0 | 10±2 | 2/2 | 30 | 2.05 | 8.5 | 155FS10 – 12.5 | 155FS10 – 25 | 155FS10 – 50 |
| – | 1550.0±3 | 20±5 | 3/3 | 30 | 2.05 | 8.5 | 155FS20 – 12.5 | 155FS20 – 25 | 155FS20 – 50 |
| – | 1665.0±3 | 20±5 | 3/3 | 30 | 2.05 | 8.5 | 167FS20 – 12.5 | 167FS20 – 25 | 167FS20 – 50 |
| Ar/Ion Laser | 457.9+0.2/-0 | 1±0.2 | 2/2 | 40 | 1.45 | 8.5 | 458FS02 – 12.5 | 458FS02 – 25 | 458FS02 – 50 |
| Ar/Ion Laser | 457.9+0.5/-0 | 3±0.5 | 2/2 | 45 | 1.45 | 8.5 | 458FS03 – 12.5 | 458FS03 – 25 | 458FS03 – 50 |
| Ar/Ion Laser | 457.9+2/-0 | 10±2 | 3/3 | 50 | 1.45 | 7.0 | 458FS10 – 12.5 | 458FS10 – 25 | 458FS10 – 50 |
| Ar/Ion Laser | 488.0+2-0 | 1±0.2 | 2/2 | 45 | 2.05 | 8.5 | 488FS02 – 12.5 | 488FS02 – 25 | 488FS02 – 50 |
| Ar/Ion Laser | 488.0+0.5/-0 | 3±0.5 | 2/2 | 50 | 2.05 | 8.5 | 488FS03 – 12.5 | 488FS03 – 25 | 488FS03 – 50 |
| Ar/Ion Laser | 488.0+2/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 488FS10 – 12.5 | 488FS10 – 25 | 488FS10 – 50 |
| Ar/Ion Laser | 514.5+0.2/-0 | 1±0.2 | 2/2 | 45 | 2.05 | 8.5 | 515FS02 – 12.5 | 515FS02 – 25 | 515FS02 – 50 |
| Ar/Ion Laser | 514.5+0.5/-0 | 3±0.5 | 2/2 | 50 | 2.05 | 8.5 | 515FS03 – 12.5 | 515FS03 – 25 | 515FS03 – 50 |
| Ar/Ion Laser | 514.5+2/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 515FS10 – 12.5 | 515FS10 – 25 | 515FS10 – 50 |
| biomed | 340.0+2/-0 | 8±2 | 3/3 | 35 | 1.45 | 8.0 | 340FS08 – 12.5 | 340FS08 – 25 | 340FS08 – 50 |
| biomed | 340.0+3/-0 | 10±2 | 3/3 | 25 | 1.45 | 8.0 | 340FS10 – 12.5 | 340FS10 – 25 | 340FS10 – 50 |
| biomed | 340.0±3 | 25±5 | 3/3 | 25 | 1.45 | 7.0 | 340FS25 – 12.5 | 340FS25 – 25 | 340FS25 – 50 |
| Cd | 228.0+3/-0 | 10±2 | MDM/7 | 15 | – | 4.0 | 228FS10 – 12.5 | 228FS10 – 25 | 228FS10 – 50 |
| Cd | 228.0±3 | 25±5 | MDM/8 | 20 | – | 4.0 | 228FS25 – 12.5 | 228FS25 – 25 | 228FS25 – 50 |
| Cd | 326.1+0.5/-0 | 3±0.5 | 2/2 | 15 | 1.45 | 8.0 | 326FS03 – 12.5 | 326FS03 – 25 | 326FS03 – 50 |
| Cd | 326.1+2/-0 | 10±2 | 3/3 | 25 | 1.45 | 8.0 | 326FS10 – 12.5 | 326FS10 – 25 | 326FS10 – 50 |
| Cd | 326.1±3 | 25±5 | 3/3 | 25 | 1.45 | 8.0 | 326FS25 – 12.5 | 326FS25 – 25 | 326FS25 – 50 |
| Cd | 508.5+2/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 508FS10 – 12.5 | 508FS10 – 25 | 508FS10 – 50 |
| Co | 239.0+3/-0 | 10±2 | MDM/7 | 15 | – | 4.0 | 239FS10 – 12.5 | 239FS10 – 25 | 239FS10 – 50 |
| Co | 239.0±3 | 25±5 | MDM/8 | 20 | – | 4.0 | 239FS25 – 12.5 | 239FS25 – 25 | 239FS25 – 50 |
| Cs | 455.5+2/-0 | 10±2 | 3/3 | 50 | 1.45 | 7.0 | 456FS10 – 12.5 | 456FS10 – 25 | 456FS10 – 50 |
| Ga/As Laser | 830.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 830FS10 – 12.5 | 830FS10 – 25 | 830FS10 – 50 |
| GaAs | 905.0+0.2/-0 | 1±0.2 | 2/2 | 45 | 2.05 | 8.5 | 905FS02 – 12.5 | 905FS02 – 25 | 905FS02 – 50 |
| GaAs | 905.0+0.5/-0 | 3±0.5 | 2/2 | 45 | 2.05 | 8.5 | 905FS03 – 12.5 | 905FS03 – 25 | 905FS03 – 50 |
| GaAs | 905.0+2/-0 | 10±0.2 | 3/3 | 50 | 2.05 | 7.0 | 905FS10 – 12.5 | 905FS10 – 25 | 905FS10 – 50 |
| H-α | 656.3+0.2/-0 | 1±0.2 | 2/2 | 45 | 2.05 | 8.5 | 656FS02 – 12.5 | 656FS02 – 25 | 656FS02 – 50 |
| H-α | 656.3+0.5/-0 | 3±0.5 | 2/2 | 50 | 2.05 | 8.5 | 656FS03 – 12.5 | 656FS03 – 25 | 656FS03 – 50 |
| H-α | 656.3+2/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 656FS10 – 12.5 | 656FS10 – 25 | 656FS10 – 50 |
| H-β | 486.1+2/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 486FS10 – 12.5 | 486FS10 – 25 | 486FS10 – 50 |
| He/Cd Laser | 441.6+0.2/-0 | 1±0.2 | 2/2 | 35 | 1.45 | 8.5 | 442FS02 – 12.5 | 442FS02 – 25 | 442FS02 – 50 |
| He/Cd Laser | 441.6+0.5/-0 | 3±0.5 | 2/2 | 40 | 1.45 | 8.5 | 442FS03 – 12.5 | 442FS03 – 25 | 442FS03 – 50 |
| He/Cd Laser | 441.6+2/-0 | 10±2 | 3/3 | 45 | 1.45 | 7.0 | 442FS10 – 12.5 | 442FS10 – 25 | 442FS10 – 50 |
| HeCd | 248.0+3 | 10±2 | MDM/7 | 12 | – | 4.0 | 248FS10 – 12.5 | 248FS10 – 25 | 248FS10 – 50 |
| HeNe Laser | 632.8+0.2/-0 | 1±0.2 | 2/2 | 50 | 2.05 | 8.5 | 633FS02 – 12.5 | 633FS02 – 25 | 633FS02 – 50 |
| HeNe Laser | 632.8+0.5/-0 | 3±0.5 | 2/2 | 50 | 2.05 | 8.5 | 633FS03 – 12.5 | 633FS03 – 25 | 633FS03 – 50 |
| HeNe Laser | 632.8+2/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 633FS10 – 12.5 | 633FS10 – 25 | 633FS10 – 50 |
| Hg | 253.7+3/-0 | 10±2 | MDM/7 | 12 | – | 4.0 | 254FS10 – 12.5 | 254FS10 – 25 | 254FS10 – 50 |
| Hg | 253.7±3 | 25±5 | MDM/8 | 18 | – | 4.0 | 254FS25 – 12.5 | 254FS25 – 25 | 254FS25 – 50 |
| Hg | 253.7+10/-0 | 40±8 | MDM/9 | 20 | – | 4.0 | 254FS40 – 12.5 | 254FS40 – 25 | 254FS40 – 50 |
| Hg | 265.0+3/-0 | 10±2 | MDM/7 | 12 | – | 4.0 | 265FS10 – 12.5 | 265FS10 – 25 | 265FS10 – 50 |
| Hg | 265±3 | 25±5 | MDM/8 | 20 | – | 4.0 | 265FS25 – 12.5 | 265FS25 – 25 | 265FS25 – 50 |
| Hg | 270.0+3/-0 | 10±2 | MDM/7 | 12 | – | 4.0 | 270FS10 – 12.5 | 270FS10 – 25 | 270FS10 – 50 |
| Hg | 275.0+3/-0 | 10±2 | MDM/7 | 12 | – | 4.0 | 275FS10 – 12.5 | 275FS10 – 25 | 275FS10 – 50 |
| Hg | 280.0+3/-0 | 10±2 | MDM/7 | 12 | – | 4.0 | 280FS10 – 12.5 | 280FS10 – 25 | 280FS10 – 50 |
| Hg | 280.0±3 | 25±5 | MDM/8 | 20 | – | 4.0 | 280FS25 – 12.5 | 280FS25 – 25 | 280FS25 – 50 |
| Hg | 289.0+3/-0 | 10±2 | MDM/7 | 15 | – | 4.0 | 289FS10 – 12.5 | 289FS10 – 25 | 289FS10 – 50 |
| Hg | 296.7+3/-0 | 10±2 | MDM/7 | 15 | – | 4.0 | 297FS10 – 12.5 | 297FS10 – 25 | 297FS10 – 50 |
| Hg | 313.0+3/-0 | 10±2 | MDM/7 | 15 | – | 4.0 | 313FS10 – 12.5 | 313FS10 – 25 | 313FS10 – 50 |
| Hg | 313.0±3 | 25±5 | MDM/8 | 20 | – | 4.0 | 313FS25 – 12.5 | 313FS25 – 25 | 313FS25 – 50 |
| Hg | 334.0+2/-0 | 10±2 | 3/3 | 25 | 1.45 | 8.0 | 334FS10 – 12.5 | 334FS10 – 25 | 334FS10 – 50 |
| Hg | 365.0+1/-0 | 5±1 | 2/2 | 20 | 1.45 | 7.0 | 365FS05 – 12.5 | 365FS05 – 25 | 365FS05 – 50 |
| Hg | 365.0+2/-0 | 10±2 | 3/3 | 25 | 1.45 | 7.0 | 365FS10 – 12.5 | 365FS10 – 25 | 365FS10 – 50 |
| Hg | 365.0±3 | 25±5 | 3/3 | 25 | 1.45 | 7.0 | 365FS25 – 12.5 | 365FS25 – 25 | 365FS25 – 50 |
| Hg | 404.7+1/-0 | 5±1 | 2/2 | 35 | 1.45 | 7.0 | 405FS05 – 12.5 | 405FS05 – 25 | 405FS05 – 50 |
| Hg | 404.7+2/-0 | 10±2 | 3/3 | 45 | 1.45 | 7.0 | 405FS10 – 12.5 | 405FS10 – 25 | 405FS10 – 50 |
| Hg | 435.8+1/-0 | 5±1 | 2/2 | 45 | 1.45 | 7.0 | 436FS05 – 12.5 | 436FS05 – 25 | 436FS05 – 50 |
| Hg | 435.8+2/-0 | 10±2 | 3/3 | 45 | 1.45 | 7.0 | 436FS10 – 12.5 | 436FS10 – 25 | 436FS10 – 50 |
| Hg | 546.1+1/-0 | 5±1 | 2/2 | 55 | 1.45 | 7.0 | 546FS05 – 12.5 | 546FS05 – 25 | 546FS05 – 50 |
| Hg | 577.0+1/-0 | 5±1 | 2/2 | 50 | 1.45 | 7.0 | 577FS05 – 12.5 | 577FS05 – 25 | 577FS05 – 50 |
| Hg | 577.0+2/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 577FS10 – 12.5 | 577FS10 – 25 | 577FS10 – 50 |
| Hg | 1014.0+2/-0 | 10±2 | 3/3 | 45 | 2.05 | 8.5 | 014FS10 – 12.5 | 014FS10 – 25 | 014FS10 – 50 |
| K | 766.5+2/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 766FS10 – 12.5 | 766FS10 – 25 | 766FS10 – 50 |
| Kr Laser | 647.1+0.2/-0 | 1±0.2 | 2/2 | 50 | 2.05 | 8.5 | 647FS02 – 12.5 | 647FS02 – 25 | 647FS02 – 50 |
| Kr Laser | 647.1+0.5/-0 | 3±0.5 | 2/2 | 50 | 2.05 | 8.5 | 647FS03 – 12.5 | 647FS03 – 25 | 647FS03 – 50 |
| Kr Laser | 647.1+2/-0 | 10±2 | 3/3 | 60 | 2.05 | 7.0 | 647FS10 – 12.5 | 647FS10 – 25 | 647FS10 – 50 |
| Laser Diode | 670.8+2/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 671FS10 – 12.5 | 671FS10 – 25 | 671FS10 – 50 |
| Laser Diode | 780.0±2 | 20±4 | 3/3 | 50 | 2.05 | 7.0 | 780FS20 – 12.5 | 780FS20 – 25 | 780FS20 – 50 |
| Laser Diode | 810.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 810FS10 – 12.5 | 810FS10 – 25 | 810FS10 – 50 |
| Laser Diode | 810.0±2 | 20±4 | 3/3 | 50 | 2.05 | 7.0 | 810FS20 – 12.5 | 810FS20 – 25 | 810FS20 – 50 |
| Laser Diode | 830.0±2 | 20±4 | 3/3 | 50 | 2.05 | 7.0 | 830FS20 – 12.5 | 830FS20 – 25 | 830FS20 – 50 |
| Li | 670.0+3/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 670FS10 – 12.5 | 670FS10 – 25 | 670FS10 – 50 |
| Methane | 1665.0+3/-0 | 10±2 | 2/2 | 30 | 2.05 | 8.5 | 167FS10 – 12.5 | 167FS10 – 25 | 167FS10 – 50 |
| N2 Laser | 337.1+2/-0 | 10±2 | 3/3 | 25 | 1.45 | 8.0 | 337FS10 – 12.5 | 337FS10 – 25 | 337FS10 – 50 |
| N2 Laser | 337.1+0.5/-0 | 3±0.5 | 2/2 | 20 | 1.45 | 7.0 | 337FS03 – 12.5 | 337FS03 – 25 | 337FS03 – 50 |
| Na | 589.3+2/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 589FS10 – 12.5 | 589FS10 – 25 | 589FS10 – 50 |
| Nd Laser | 1064.0+0.2/-0 | 1±0.2 | 2/2 | 40 | 2.05 | 8.5 | 064FS02 – 12.5 | 064FS02 – 25 | 064FS02 – 50 |
| Nd/YAG | 1064.0+0.5/-0 | 3±0.5 | 2/2 | 45 | 2.05 | 8.5 | 064FS03 – 12.5 | 064FS03 – 25 | 064FS03 – 50 |
| Nd/YAG | 1064.0+2/-0 | 10±2 | 3/3 | 40 | 2.05 | 8.5 | 064FS10 – 12.5 | 064FS10 – 25 | 064FS10 – 50 |
| Nd/YAG Laser | 350.0+3/-0 | 10±2 | 3/3 | 25 | 1.45 | 8.0 | 350FS10 – 12.5 | 350FS10 – 25 | 350FS10 – 50 |
| Nd/YAG Laser | 532.0+0.2/-0 | 1±0.2 | 2/2 | 45 | 2.05 | 8.5 | 532FS02 – 12.5 | 532FS02 – 25 | 532FS02 – 50 |
| Nd/YAG Laser | 532.0+0.5/-0 | 3±0.5 | 2/2 | 50 | 2.05 | 8.5 | 532FS03 – 12.5 | 532FS03 – 25 | 532FS03 – 50 |
| Nd/YAG Laser | 532.0+2/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 532FS10 – 12.5 | 532FS10 – 25 | 532FS10 – 50 |
| Ni | 232.0+3/-0 | 10±2 | MDM/7 | 15 | – | 4.0 | 232FS10 – 12.5 | 232FS10 – 25 | 232FS10 – 50 |
| Ni | 370.0+3/-0 | 10±2 | 3/3 | 25 | 1.45 | 7.0 | 370FS10 – 12.5 | 370FS10 – 25 | 370FS10 – 50 |
| Rb | 780.0+3/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 780FS10 – 12.5 | 780FS10 – 25 | 780FS10 – 50 |
| Rb | 794.7+2/-0 | 10±2 | 3/3 | 50 | 2.05 | 7.0 | 795FS10 – 12.5 | 795FS10 – 25 | 795FS10 – 50 |
| Ruby Laser | 694.3+0.2/-0 | 1±0.2 | 2/2 | 45 | 2.05 | 8.5 | 694FS02 – 12.5 | 694FS02 – 25 | 694FS02 – 50 |
| Ruby Laser | 694.3+0.5/-0 | 3±0.5 | 2/2 | 50 | 2.05 | 8.5 | 694FS03 – 12.5 | 694FS03 – 25 | 694FS03 – 50 |
| Ruby Laser | 694.3+2/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 694FS10 – 12.5 | 694FS10 – 25 | 694FS10 – 50 |
| Ti | 535.0+2/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 535FS10 – 12.5 | 535FS10 – 25 | 535FS10 – 50 |
| Zn | 214.0+3/-0 | 10±2 | MDM/7 | 12 | – | 4.0 | 214FS10 – 12.5 | 214FS10 – 25 | 214FS10 – 50 |
| Zn | 214.0±3 | 22±4 | MDM/8 | 20 | – | 4.0 | 214FS22 – 12.5 | 214FS22 – 25 | 214FS22 – 50 |
| Zn | 307.1+3/-0 | 10±2 | MDM/7 | 15 | – | 4.0 | 307FS10 – 12.5 | 307FS10 – 25 | 307FS10 – 50 |
| Zn | 307.1±3 | 25±5 | MDM/8 | 20 | – | 4.0 | 307FS25 – 12.5 | 307FS25 – 25 | 307FS25 – 50 |
| Zn | 546.1+2/-0 | 10±2 | 3/3 | 55 | 2.05 | 7.0 | 546FS10 – 12.5 | 546FS10 – 25 | 546FS10 – 50 |
| Zn | 636.2+2/-0 | 10±2 | 3/3 | 60 | 2.05 | 7.0 | 636FS10 – 12.5 | 636FS10 – 25 | 636FS10 – 50 |
