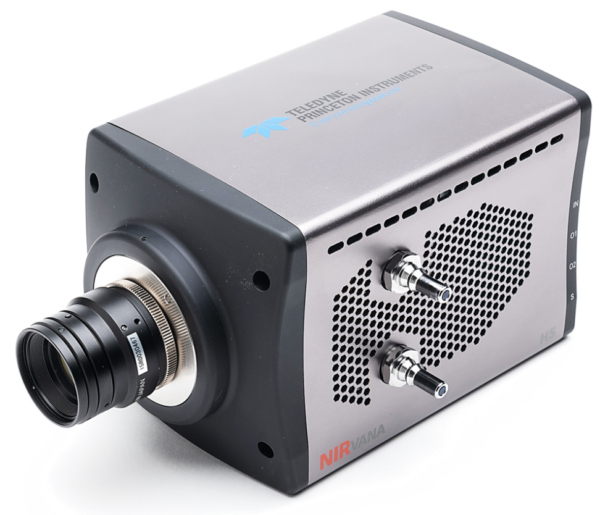

NIRvana® HS

High-Speed NIR/NIR-II InGaAs Cameras

The NIRvana® HS InGaAs focal plane array (FPA) camera delivers ultra high-speed imaging for wavelengths in the 900 -1700 nm range.

  • 900 – 1700 nm sensitivity
  • 20 μm pixel size sensor
  • Up to 250 fps imaging
  • Lifetime vacuum guarantee

Description

High-Speed NIR/NIR-II InGaAs Cameras

The NIRvana® HS InGaAs focal plane array (FPA) camera delivers ultra high-speed imaging for wavelengths in the 900 -1700 nm range.

  • 900 – 1700 nm sensitivity
  • 20 μm pixel size sensor
  • Up to 250 fps imaging
  • Lifetime vacuum guarantee

Key Features

NIR/NIR-II Sensitivity Through InGaAs Sensors

The NIRvana utilizes an InGaAs 640 x 512, 20 μm pixel sensor to deliver a large field of view with high dynamic range for sensitive imaging (>85% QE) within the 900 – 1700 nm wavelength range.

Taking advantage of liquid nitrogen cooling, the InGaAs sensor provides the highest sensitivity, with thermoelectrical cooling options offering high frame rate and flexibility.

High NIR/NIR-II Sensitivity

The NIRvana offers >85% QE between 950 nm to 1500 nm covering a wide variety of applications.

Thermoelectric Cooling

Thermoelectric cooling provided with the NIRvana allows for deep cooling up to -55℃ with air, producing the lowest dark current in its class.

The cooling unit allows for minutes of integration time, with integrated cold shield limit ambient thermal background.

Powered by LightField Software

Powerful and intuitive software with built-in math engine allows for the complete control of cameras and spectrographs, with real-time image analysis and spectral data.

LightField software provides seamless integration of hardware controls and direct data acquisition into programmes such as National Instruments’ LabVIEW® and MathWorks’ MATLAB®. This software also fully supports IntelliCal automated wavelength and intensity calibration.

Specifications

Family Specifications

Imaging array640 x 512 pixels
Pixel Size20 μm x 20 μm
CCD image area12.8 mm x 10.24 mm
Supported interfacesGigE
