Helium-Neon Laser Series

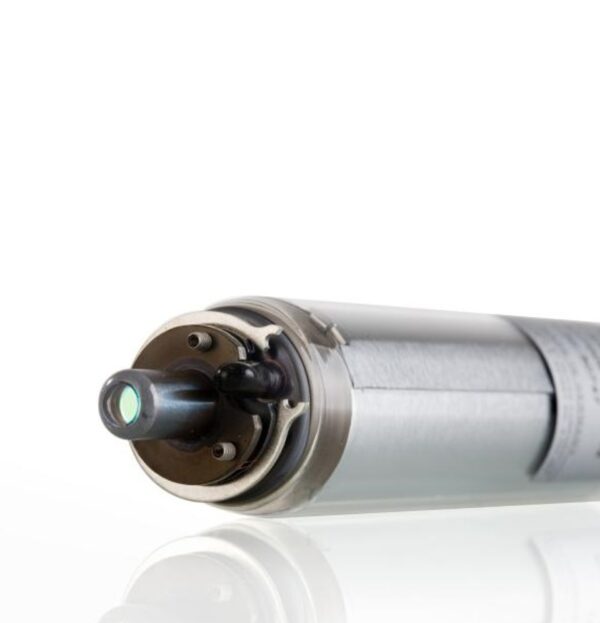

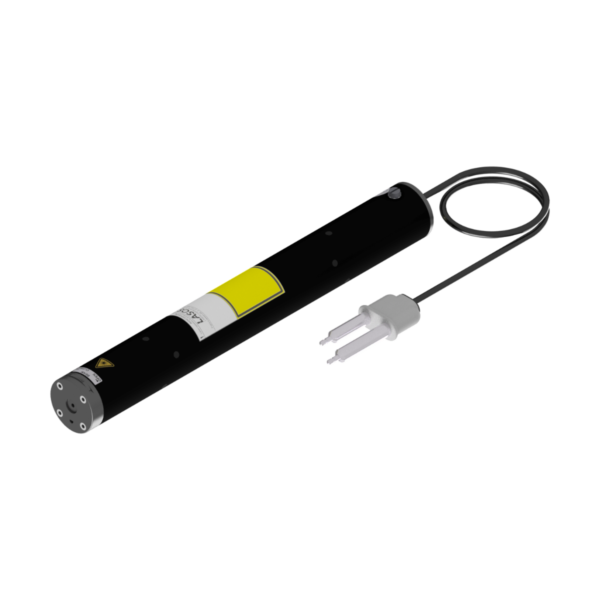

The LASOS® Helium Neon lasertubes and modules have a robust mechanical design, excellent beam quality and long service life of up to 30,000 hours. Standard and customized models are available in a large variety in the spectral range red, green and yellow with output powers between 0.5 and 20 mW. Options are single mode or multimode, randomly or linear polarized and Brewster window tubes for educational and scientific purposes.
Description
The LASOS® Helium Neon lasertubes and modules have a robust mechanical design, excellent beam quality and long service life of up to 30,000 hours. Standard and customized models are available in a large variety in the spectral range red, green and yellow with output powers between 0.5 and 20 mW. Options are single mode or multimode, randomly or linear polarized and Brewster window tubes for educational and scientific purposes.
The Helium Neon lasers are designed for multipurpose applications such as confocal laser scanning microscopy, spectroscopy, digital imaging, metrology, industrial measurement, positioning, alignment, aiming, testing, code scanning, medical, basic research, education or entertainment.
Customized solutions for specific applications can be provided.

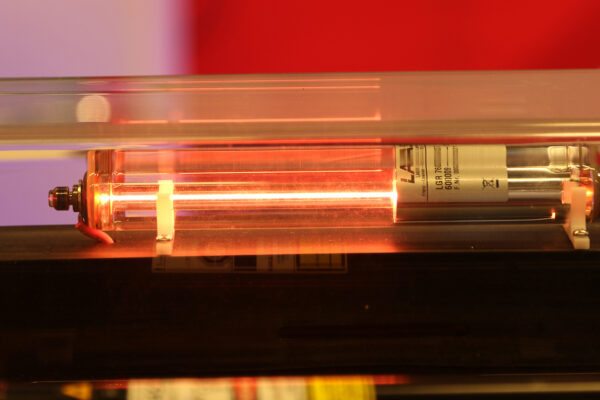

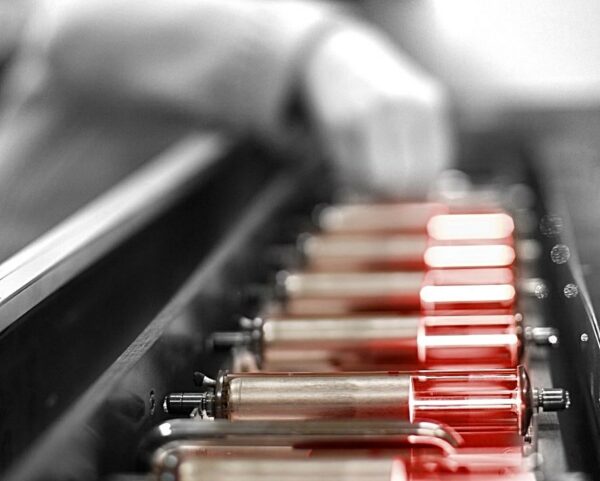

Bright History – Brighter future
- Designed for long life
- Low noise and high stability
- Excellent beam quality
- Standard and customized models
- Single mode or multi mode
- Randomly or linear polarized
Specifications Tubes

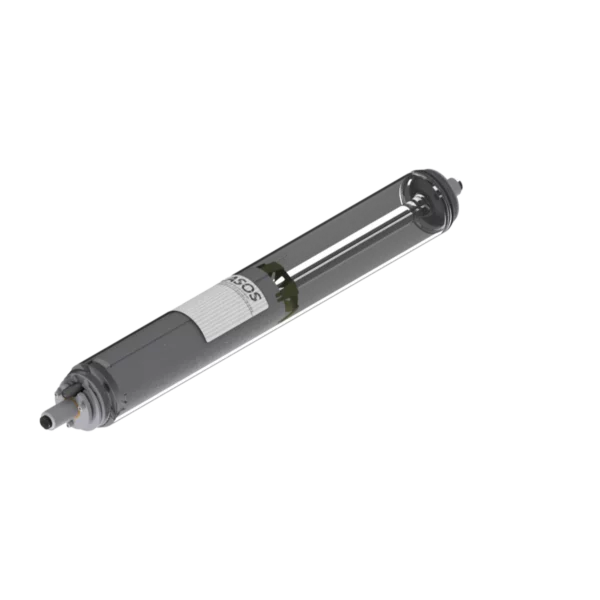

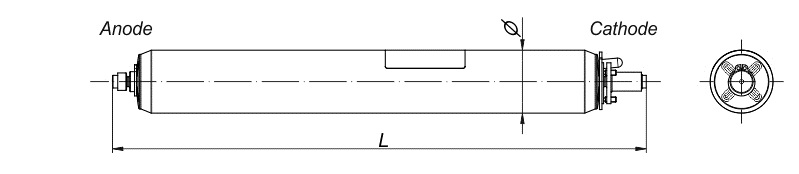

He-Ne Laser Tubes – Wavelength 632.8 nm
| Model | Min. output power free beam [mW] |
Beam Diameter [mm] |
|
|---|---|---|---|
| LGR 7656 | 0.5 | 0.34 | |
| LGR 7650 | 0.5 | 0.49 | polarized |
| LGR 7655 | 0.6 | 0.49 | |
| LGR 7655 S | 1 | 0.49 | |
| LGR 7610 * | 2 | 0.63 | |
| LGR 7610 H * | 2 | 0.63 | |
| LGR 7610 P | 2 | 0.63 | SL |
| LGR 7621 S | 2 | 0.75 | |
| LGR 7621 S01 | 2.6 | 0.75 | |
| LGR 7621 S03 | 2 | 0.75 | PS |
| LGR 7634 | 2 | 0.75 | polarized |
| LGR 7627 | 5 | 0.8 | |

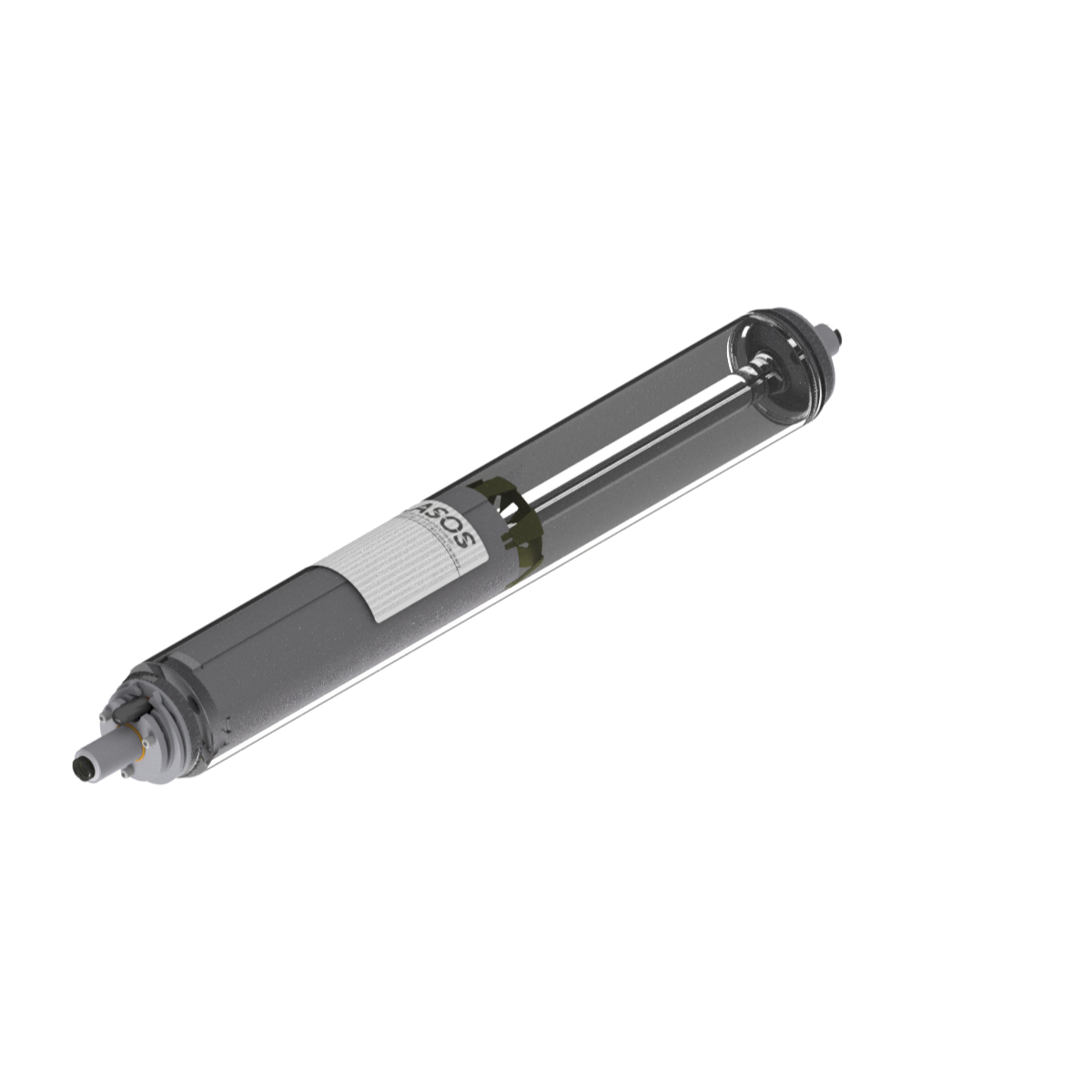

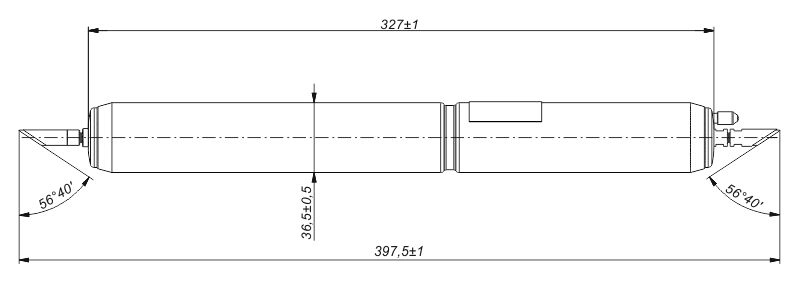

| LGR 7627 BF | 5 | Brewster window termination | |
| LGR 7628 | 5 | 0.8 | polarized |
| LGR 7621 MM | 5 | 1.4 | multimode |
| LGR 7627 MM | 10 | 1.5 | multimode |
| LGR 7660 BF01 | 1 | Brewster window termination | |
| LGR 7695 | 0.75 | 0.49 | random SF |
| LGR 7695-01 | 0.75 | 0.49 | SF: 1.5 – 2.3 MHz @ 200 G |
| LGR 7695-02 | 0.75 | 0.49 | SF: 2.3 – 2.8 MHz @ 260 G |

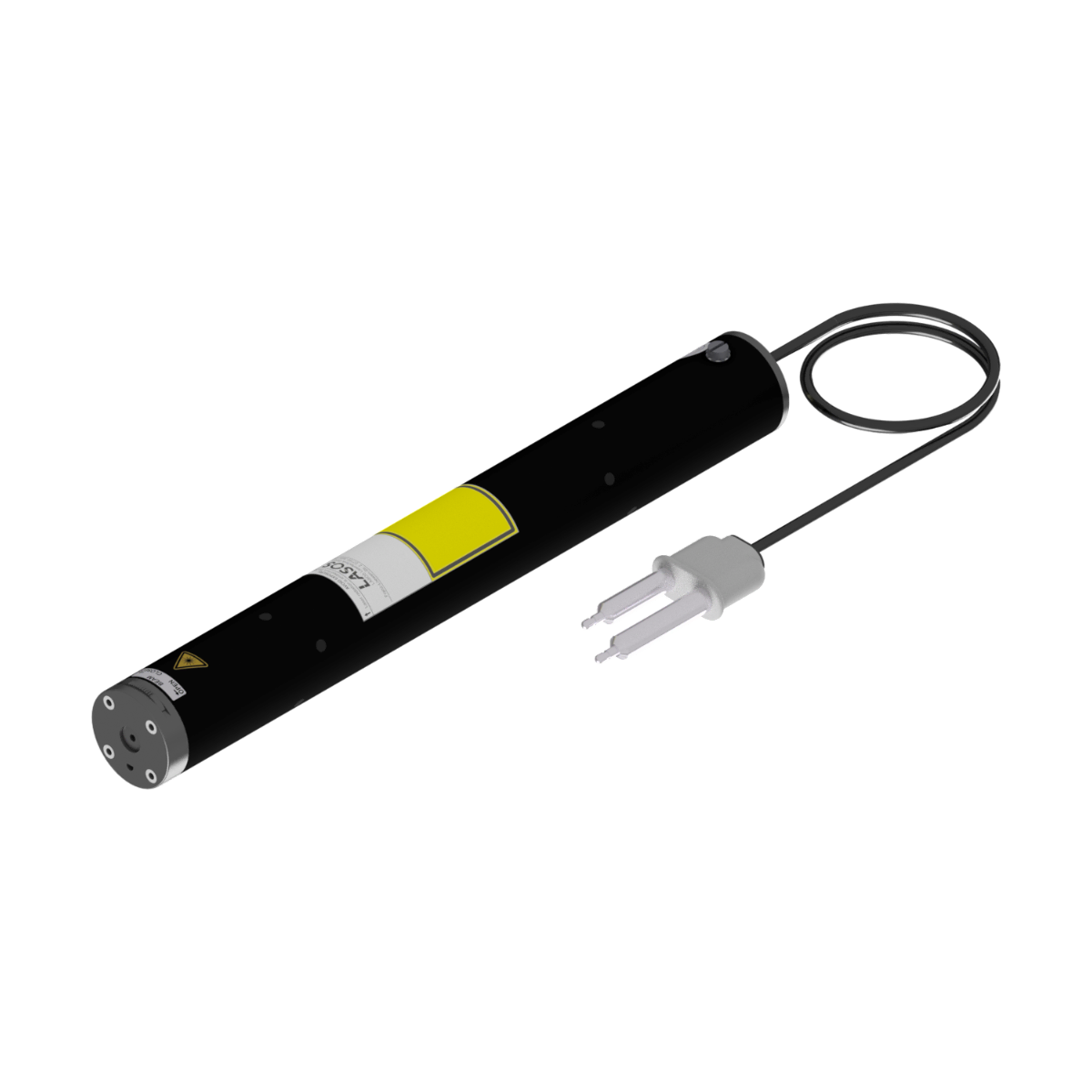

Specifications Modules
He-Ne Laser Modules – Wavelength 632.8 nm
| Model | Min. output power free beam [mW] |
Beam Diameter [mm] |
|
|---|---|---|---|
| LGK 7650-02 | 0.5 | 0.49 | polarized |
| LGK 7650-03 | 0.5 … 1 | 0.49 | laser class 2, polarized |
| LGK 7655 * | 0.6 | 0.49 | |
| LGK 7655 S * | 1 | 0.49 | |
| LGK 7610 * | 2 | 0.63 | |
| LGK 7610 H * | 2 | 0.63 | with heater foil |
| LGK 7610 P | 2 | 0.63 | polarized, without sidelines |
| LGK 7672 * | 2 | 0.75 | |
| LGK 7634 | 2 | 0.75 | polarized |

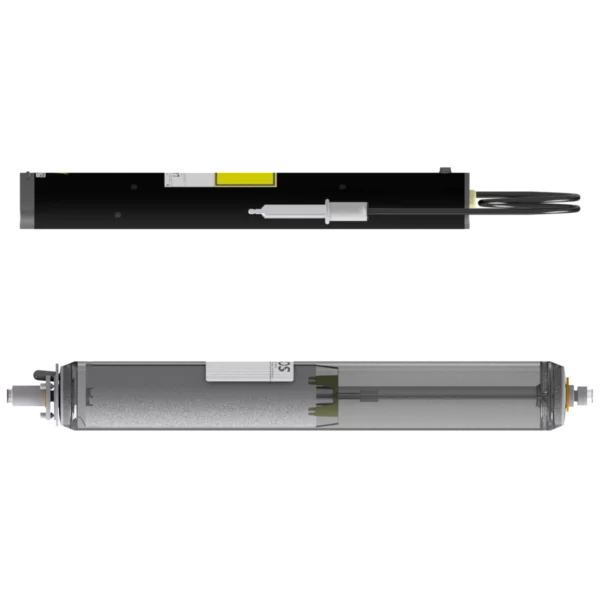

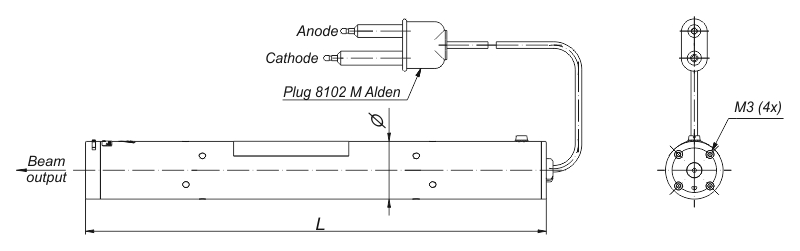

| LGK 7634 L | 2.2 … 3.2 | 0.75 | polarized |
| LGK 7627-08 | 5 | 0.8 | |
| LGK 7628 | 5 | 0.8 | polarized |
| LGK 7628 L | 5.5 … 7.5 | 0.8 | polarized |
| LGK 7621 MM | 5 | 1.4 | multimode |
| LGK 7627 MM | 10 | 1.5 | multimode |
| LGK 7653-08 | 10 | 0.7 | |
| LGK 7654-08 | 10 | 0.7 | polarized |
| LGK 7654-13 | 10 | 0.7 | polarized |
| LGK 7665 | 15 | 1 | |
| LGK 7665 P | 15 | 1 | polarized |
| LGK 7665-18 | 18 | 1 | |
| LGK 7665 P18 | 18 | 1 | polarized |
| LGK 7665-20 | 20 | 1 |
He-Ne Laser Modules – Wavelength 594 nm
| Model | Min. output power free beam [mW] |
Beam Diameter [mm] |
|
|---|---|---|---|
| LGK 7512 P | 2 | 0.79 | polarized |
He-Ne Laser Modules – Wavelength 543 nm
| Model | Min. output power free beam [mW] |
Beam Diameter [mm] |
|
|---|---|---|---|
| LGK 7786 P50 | 0.5 | 0.85 | polarized |
| LGK 7786 P75 | 0.75 | 0.85 | polarized |
| LGK 7786 P100 | 1 | 0.85 | polarized |
| LGK 7786 P100-03 | 1 | 0.85 | polarized |
| LGK 7786 P120 | 1.2 | 0.85 | polarized |
| LGK 7786 P150 | 1.5 | 0.85 | polarized |
| LGK 7786 PD1 | 1 | 0.85 | polarized |
| LGK 7785-100 | 1 | 0.88 | |
| LGK 7785-150 | 1.5 | 0.88 | |
| LGK 7785-200 | 2 | 0.88 | |
| LGK 7785-250 | 2.5 | 0.88 |
* Also available without polarization switching
All tubes without power supply! For further information please take a look into our LASOS He-Ne laser series catalogue.

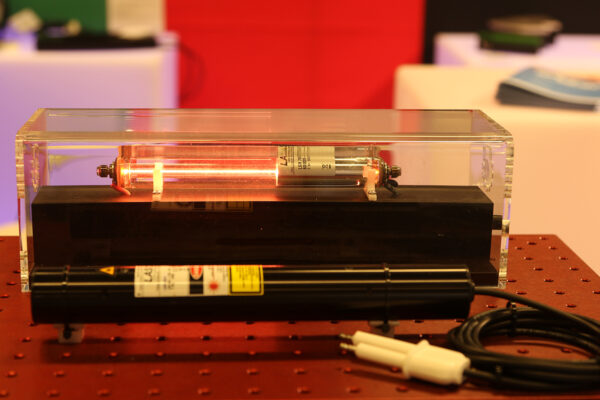

Customization
He-Ne Laser Customization / Replacement
- Customized He-Ne laser solutions for Original Equipment Manufacturer and end users
- Implementation of various special requirements
- Replacement modules for other manufacturers available (e.g. Lumentum)
Lumentum:
1101 / 1101 P 1108 / 1108 P
1103 / 1103 P 1122 / 1122 P
1107 / 1107 P 1125 / 1125 P
Glossary of terms
Side lines (SL)
Unwanted emission besides the nominal wavelength value, often disturbing in spectroscopy and interferometry. Can be suppressed by special mirror technology.
Polarization switching (PS)
Sudden changes of the polarization of different modes espacially in short tubes. Particularly disturbing when HeNe laser tubes are used in frequency stabilized operation. Can be eliminated by special selection process.
Two longitudinal modes (LM)
Tube supports exact two orthogonally polarized longitudinal modes. Required for special methods of frequency stabilization.
Magnetic field stability (MF)
The above characteristics are also guaranteed in the presence of a strong magnetic field up to 3 G
Split frequencies (SF)
Frequency split of He-Ne laser modes in the presence of a strong magnetic field (> 200 G). Can be used for obtaining extremely high frequency stability. LASOS® has been successful in developing tubes with specific split frequencies for defi ned magnetic fields.
