OptoGlide Precision Laser Delivery
OZ Optics Introduces the OptoGlide™ Precision Laser Delivery System for Stable Multi-Wavelength Fiber Coupling
Modern photonics systems demand reliable laser-to-fiber coupling, especially when multiple wavelengths, high stability, and long-term repeatability are critical. To address these challenges, OZ Optics has introduced the OptoGlide™ Precision Laser Delivery System, a robust fiber-coupling platform designed for research, industrial, biomedical, and OEM photonics applications.
Precision Fiber Coupling for Demanding Photonics Applications

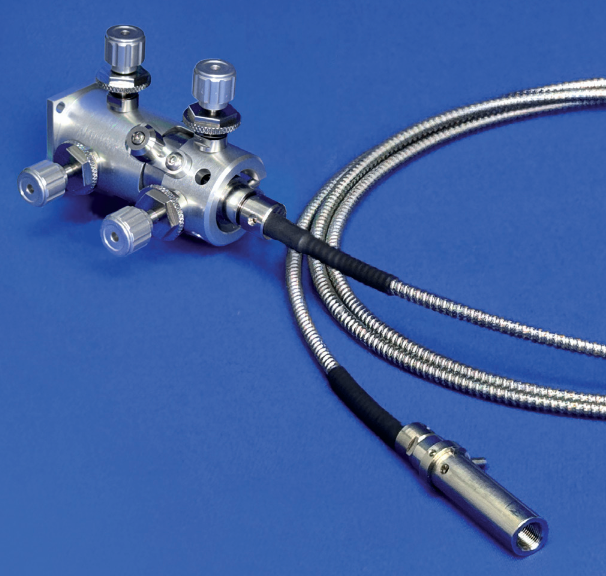

The OptoGlide™ system combines a precision alignment assembly with a polarization-maintaining (PM) single-mode fiber, enabling highly efficient and repeatable laser coupling. The compact alignment fixture mounts directly to the laser source, allowing precise beam positioning through five-axis optical adjustment. This design helps maximize coupling efficiency while maintaining long-term stability.
Key benefits include:
- High coupling efficiency, typically exceeding 65%
- Precision five-axis optical alignment
- Compatibility with single-mode, multimode, and polarization-maintaining fibers
- Support for collimated beam or connectorized fiber outputs
- Custom configurations for specific laser sources and wavelengths
Designed for Multi-Wavelength Laser Systems
One of the key strengths of the OptoGlide™ platform is its support for multi-wavelength laser systems. By utilizing achromatic optics, the system maintains high coupling efficiency across a broad wavelength range, making it ideal for applications requiring several collinear laser wavelengths. The standard multi-wavelength version supports wavelengths between 400 nm and 640 nm, while custom wavelength combinations are available upon request.
This capability is particularly valuable in spectroscopy, fluorescence instrumentation, biomedical systems, and advanced research setups where multiple laser sources must be efficiently delivered through a single fiber path.
Enhanced Stability Through Proprietary Optical Design
Laser systems often experience alignment drift caused by thermal fluctuations and mechanical changes. The OptoGlide™ system addresses this challenge through a proprietary low-wedge optical design that minimizes beam-pointing variations originating from the laser source. As a result, the system helps maintain consistent coupling performance and repeatable optical alignment over extended periods.
This stability is especially important for precision optical instrumentation, scientific experiments, and OEM-integrated photonics systems where even small alignment changes can impact measurement accuracy or overall system performance.
Flexible Output and Integration Options
The OptoGlide™ Precision Laser Delivery System is designed for seamless integration into existing optical platforms. Users can choose from various connector types or opt for a collimated beam output. Standard connector options include FC/SPC, FC/APC, FC/P8, SC/APC, and E2000/APC. Custom fiber lengths, protective jacket options, and specialized optics are also available.
The platform supports polarization-maintaining fiber with a typical polarization extinction ratio of 20 dB and can be configured with stainless-steel armored fiber protection for demanding industrial environments.
Typical Applications
- Multi-wavelength laser systems
- Scientific research laboratories
- Precision optical instrumentation
- Biomedical and life-science instrumentation
- Industrial laser systems
- OEM photonics integration
Bringing Stability and Repeatability to Fiber-Coupled Laser Systems
As laser-based systems continue to become more complex, reliable optical coupling becomes increasingly important. The OptoGlide™ Precision Laser Delivery System from OZ Optics combines precise alignment, high coupling efficiency, multi-wavelength compatibility, and robust mechanical stability to help engineers and researchers achieve consistent optical performance in demanding environments.
For photonics developers looking to simplify laser integration while improving long-term coupling stability, OptoGlide™ offers an attractive solution for both laboratory and commercial systems. With its flexible configuration options and focus on optical performance, it is well suited for next-generation photonics applications where stability, repeatability, and efficiency are essential.
