miniRaman Spectrometer
Ultra-Compact Raman Spectroscopy Without Compromise
The miniRaman spectrometer from Lightnovo is the third-generation evolution of the acclaimed miniRaman series, combining exceptional analytical performance with an ultra-compact design. As one of the world’s smallest Raman spectrometers, it delivers laboratory-grade results in a portable instrument, making it ideal for both field and laboratory applications.
Designed for high-sensitivity qualitative and quantitative analysis, the miniRaman offers rapid, reliable measurements while maintaining the accuracy and stability required for advanced research and industrial environments.
Description
Patented Reference Channel Technology
A key differentiator of the miniRaman is its patented integrated reference channel. During every measurement, the acquired spectrum is automatically compared with the internal reference spectrum, enabling continuous real-time calibration.
This unique approach provides:
- Automatic Raman shift correction
- Automatic intensity correction
- Improved measurement stability
- Enhanced reproducibility
- Fast and reliable analytical results
By calibrating the spectrometer during every acquisition, users can confidently obtain accurate data without frequent manual recalibration.
Flexible Configuration Options
The miniRaman is available with either:
- 785 nm laser
- 660 nm laser
Both configurations can be optimized for specific application requirements.
SERS Configuration
For Surface-Enhanced Raman Spectroscopy (SERS), the miniRaman 785 nm is available in a dedicated SERS configuration, enabling highly sensitive measurements of low-concentration analytes.
Extended Spectral Range
When a broader spectral range is required, the miniRaman 660 nm Full Range model provides coverage from:
270 to 3900 cm⁻¹
compared to the standard 270 to 3000 cm⁻¹ range of the 785 nm version.
Designed for Portable Raman Analysis
With dimensions of only 105 × 50 × 45 mm and a weight of approximately 360 g, the miniRaman is perfectly suited for handheld and mobile spectroscopy applications.
Key portability features include:
- Compact and lightweight design
- Integrated rechargeable battery
- Up to 4 hours of operation on a single charge
- Optional IP67-rated ruggedized version for field use

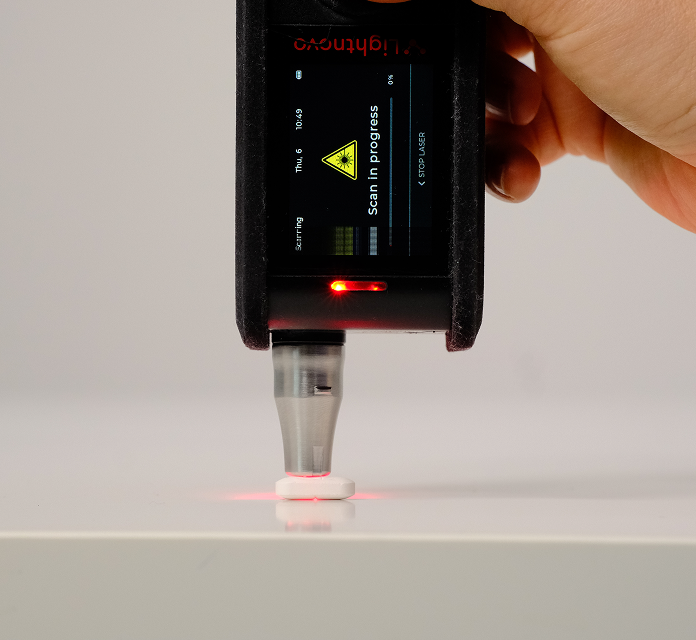

- Built-in display for immediate spectral visualization
- Simple one-button operation
Instant Material Identification

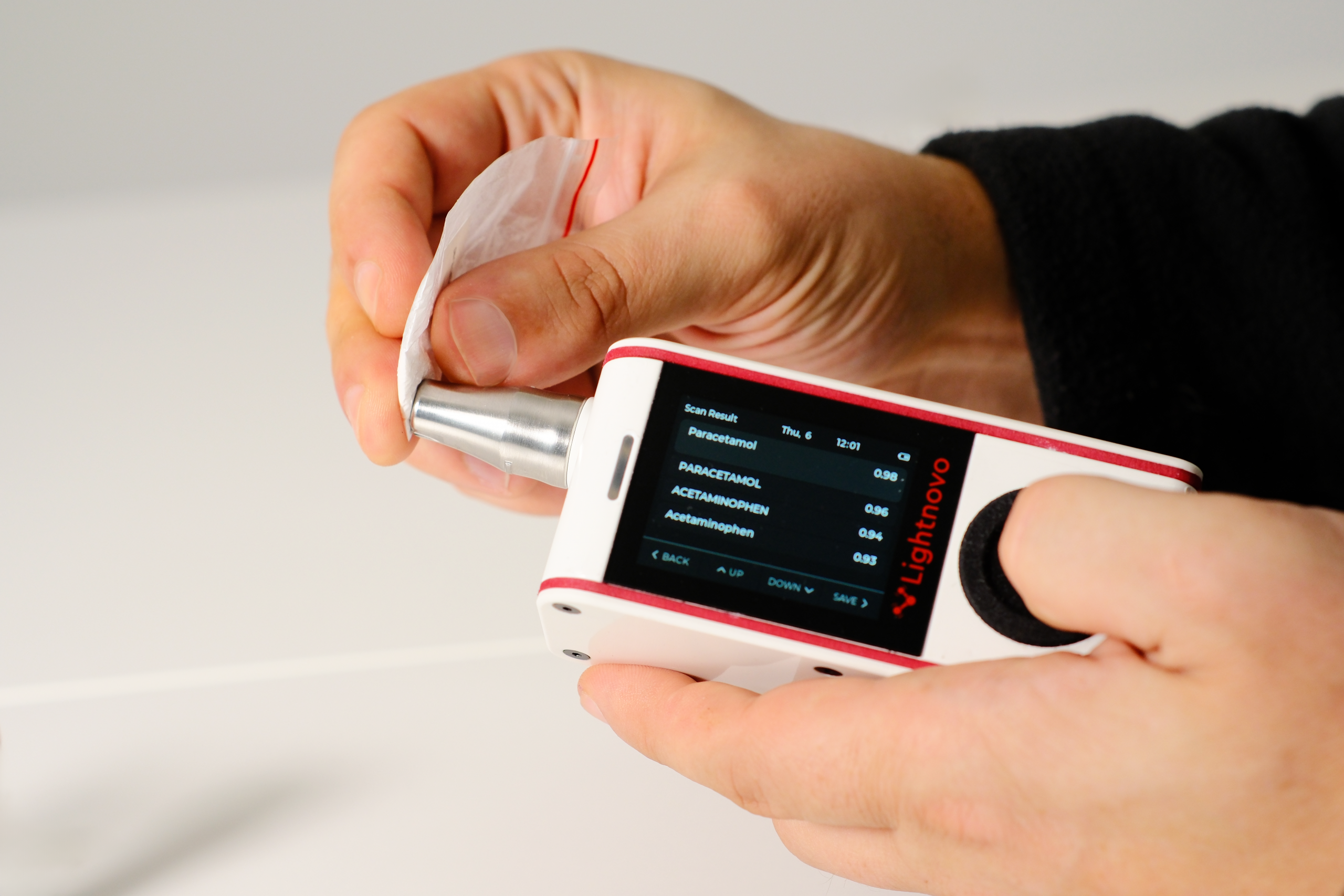

The integrated software platform can quickly identify unknown substances using user-created or commercially available spectral libraries. Identified materials can be displayed together with additional information, including CAS numbers when available.
Available database categories include:
- Toxic chemicals
- Pharmaceuticals and biomedical compounds
- Food additives
- Petrochemicals
- Semiconductors
- Microplastics
- Industrial materials
Software and Connectivity
The miniRaman can be operated via:
- Bluetooth connection to Android devices

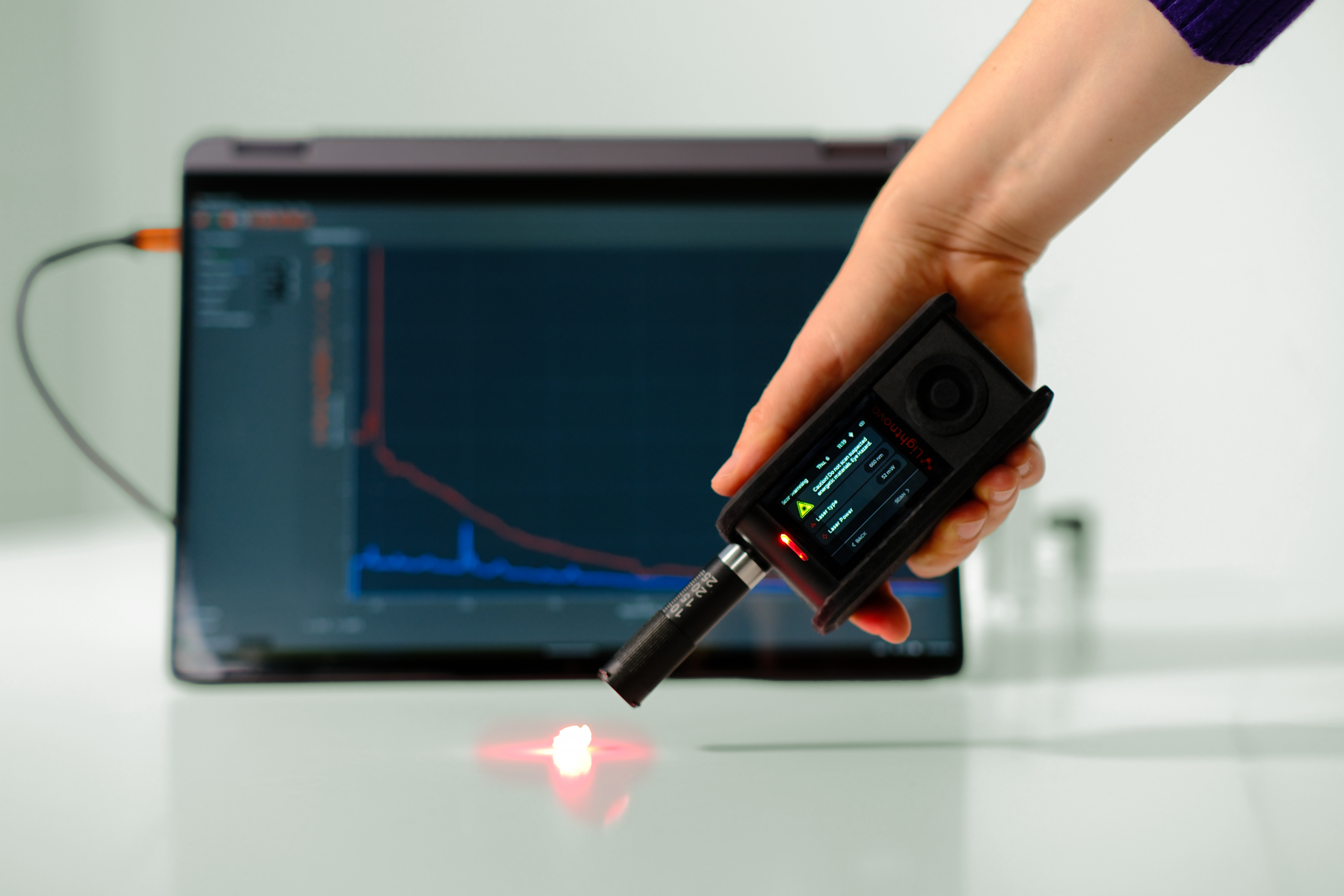

- USB connection to Windows 10 and Windows 11 PCs
The powerful MiraSpec software provides extensive capabilities for data acquisition, processing, and analysis.
Data Acquisition
- Laser power control
- Exposure time settings
- Detector gain adjustment
- Multiple acquisitions and averaging
- Spectral range selection
Data Processing
- Baseline correction
- Spectral normalization
- Spectral equalization
- Spectrum standardization
Advanced Analysis
- Material identification
- Spectral library creation
- Principal Component Analysis (PCA)
- Principal Component Regression (PCR)
- Quantitative peak calibration
- Peak height and peak area analysis

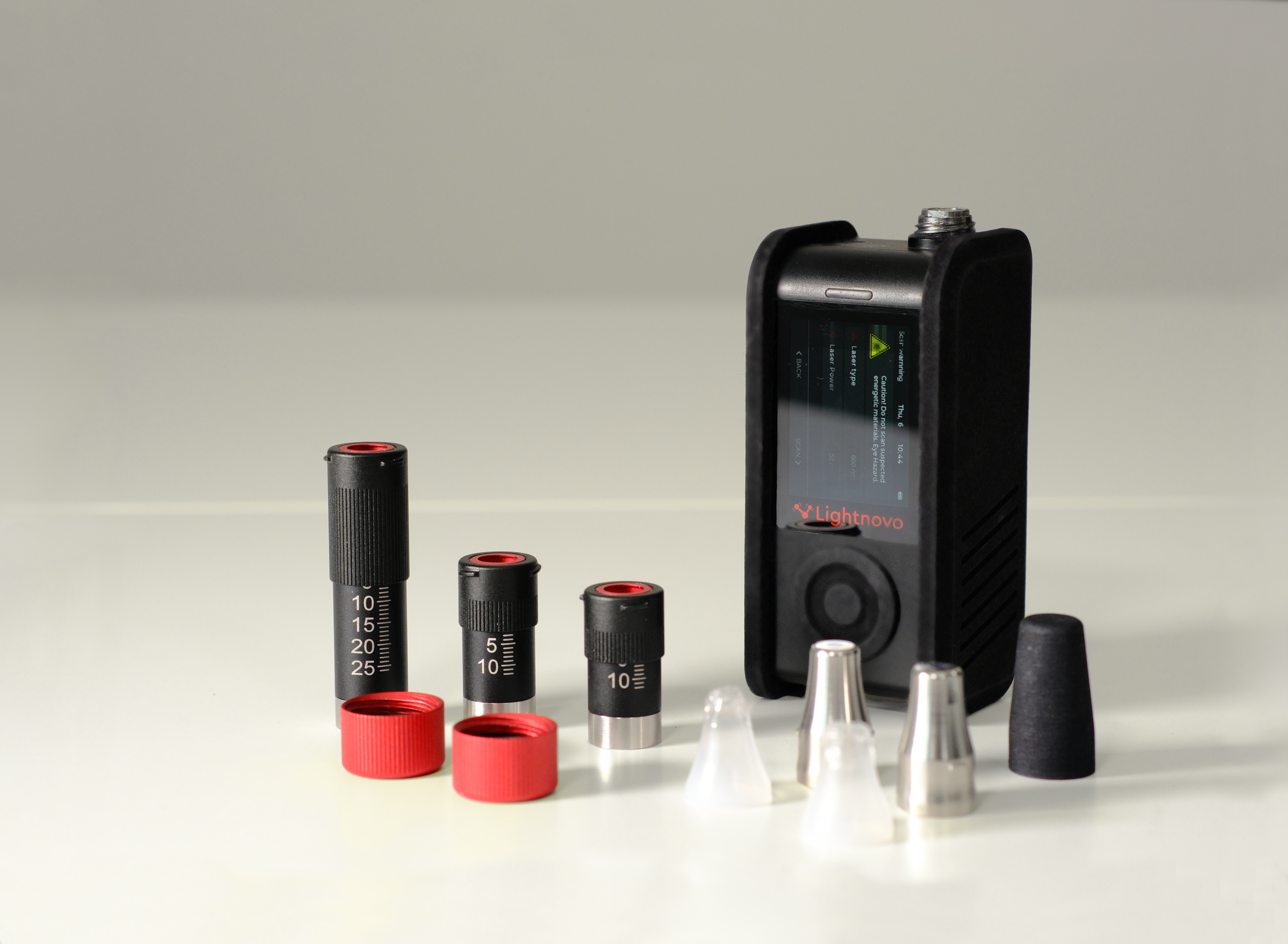

Available Accessories
A wide range of accessories enables adaptation to various measurement scenarios.
Raman Probes
- Short/medium working-distance probe (NA 0.2, WD 0–10 mm)
- Long working-distance probe (NA 0.1, WD 0–25 mm)
- Variable contact probe (NA 0.6, WD 0–200 µm)
- Fixed contact probes with multiple working distances and spot sizes
Additional Accessories
- Probe extensions (80 mm or 160 mm)
- Vial adapter for side or bottom measurements
- Calibration standards (polystyrene or calcite)
- RMS, M25×0.75 and M27×0.75 thread adapters
- Tablet press
- Probe protection cover
- Disposable tips for contact probes
Typical Applications
Quality Control & Authentication
- Alcohol verification and quality control
- Counterfeit product detection
- Raw material inspection
Industrial & Chemical Analysis
- Chemical identification
- Process monitoring
- Geological analysis
- Forensic investigations
Materials Science & Nanotechnology
- Polymer characterization
- Nanomaterial analysis
- Semiconductor inspection
- Surface-Enhanced Raman Spectroscopy (SERS)
Life Sciences & Healthcare
- Pharmaceutical analysis
- Biomedical research
- Skin diagnostics
- Cosmetics development and quality control
Key Benefits at a Glance
- Laboratory-grade Raman performance in a handheld format
- Patented real-time reference channel technology
- Continuous automatic calibration
- Available with 660 nm or 785 nm excitation
- Optional SERS configuration
- Up to 3900 cm⁻¹ spectral range
- Compact, lightweight and battery-powered
- Integrated display and one-button operation
- Comprehensive software for qualitative and quantitative analysis
- Wide range of probes and accessories for diverse applications
The Lightnovo miniRaman spectrometer is an ideal solution for researchers, quality control laboratories, industrial users, and field professionals seeking accurate Raman analysis in a truly portable package.
Specifications
Specifications
| Feature vs. model | miniRaman Standard | miniRaman SERS | miniRaman Dual | miniRaman Full Range |
|---|---|---|---|---|
| Laser wavelength | 785 nm | 785 nm | 660 nm and 785 nm | 660 nm |
| Power on sample* | 5-50 mW | 0.5-15 mW | 5-35 mW (660) 5-50 mW (785) |
10-80 mW |
| Spectral range | 270-3000 cm⁻¹ | 270-3000 cm⁻¹ | 2700-3900 cm⁻¹ (660) 300-2700 cm⁻¹ (785) |
270-3900 cm⁻¹ |
| Spectral resolution** | 8,10,14 cm⁻¹ | 8,10,14 cm⁻¹ | 12,16,20 cm⁻¹ (660) 8,10,14 cm⁻¹ (785) |
12,16,20 cm⁻¹ |
| Signal-to-noise ratio*** | 500:1 | 100:1 | 800:1 (660) 440:1 (785) |
800:1 |
* Actual laser power range can differ ± 2 % per device. Please contact us if you need specific laser power range values
** Slit size dependent; slit size can be customized (20, 35, 50 um slits)
*** Determined as peak signal-to-noise ratio of polystyrene spectrum at maximal laser power, integration time 0.3s, number of repetitions 10.
