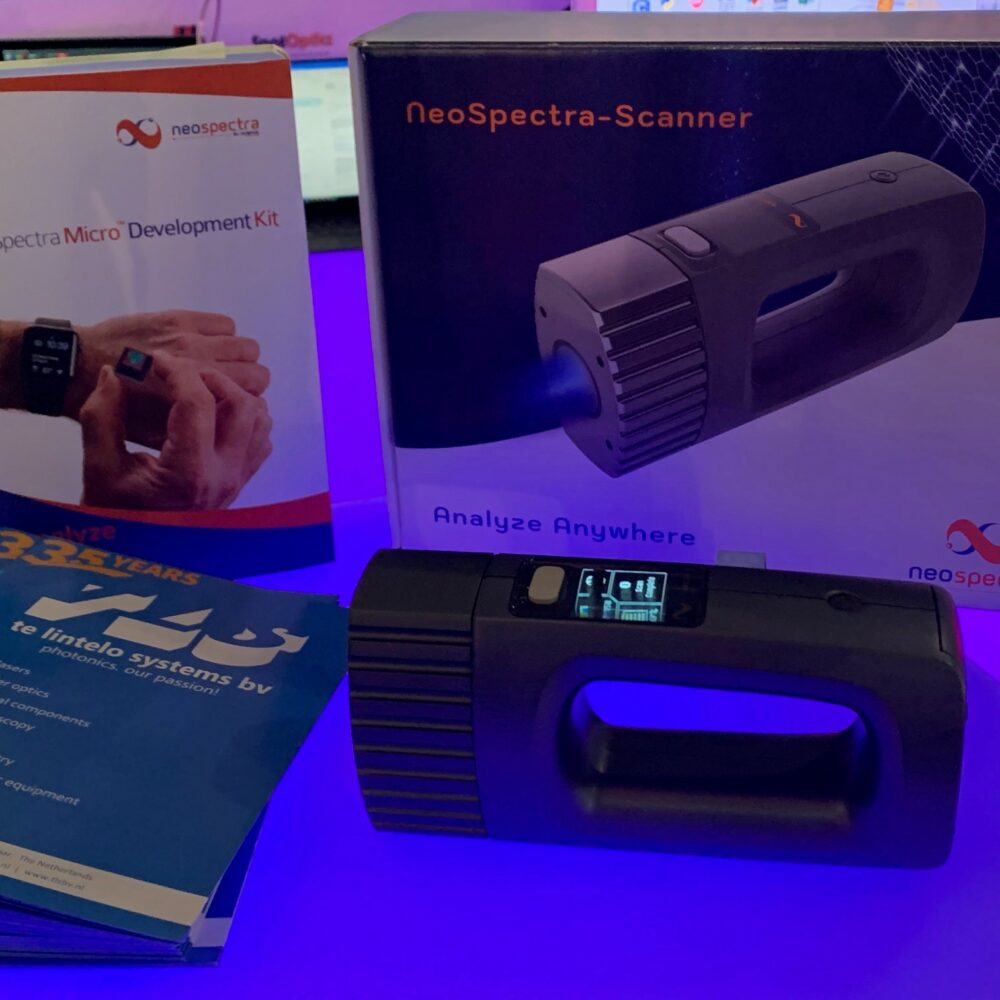

Neospectra Scanner
A product that brings material analysis into the hands of many across different industries
The most versatile handheld NIR device
Develop your material analyzer to quantify, classify and qualify materials on the go.
Description
Hardware & Software Ready
Hardware and software ready solution for unique application development.
Large Spot Size
Large spot size for measuring non-homogenous materials.
Rugged Ergonomic Design
Unique design that enables ease of use for in-field applications.
Specifications
| PARAMETER | VALUE |
|---|---|
| Diameter of collected light beam | 6 mm |
| Wavelength range | 1,350 – 2,500 nm |
| Resolution | 16 nm |
| Battery charge time | 3 – 5 hours* |
| Number of scans per battery charge | 1000 scans (2 second scans) |
| Battery type | 2 x 18650 batteries (user-replaceable) |
| Wireless connectivity | Bluetooth V4.2 BLE |
| Operating Temperature | -5 to 40 °C |
| Ingress protection rating | IP65 |

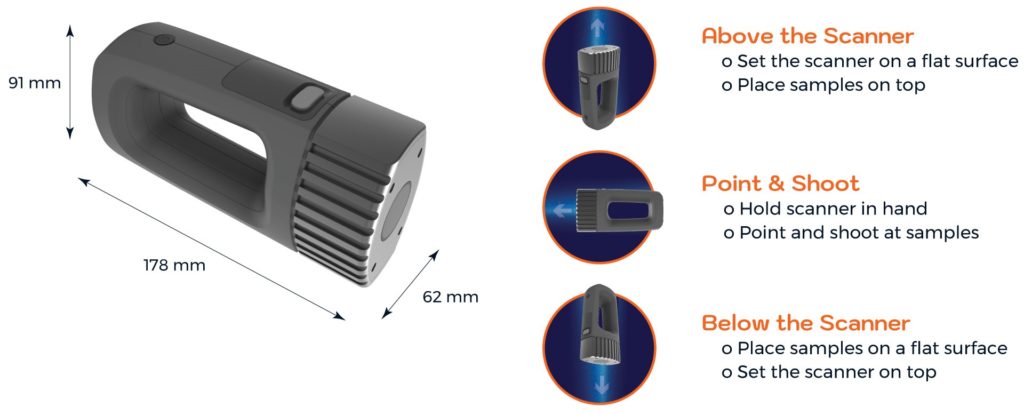

| Dimensions | 178 x 91 x 62 mm |
| Weight | 1 kg |
*3 hours till 80% capacity, 5 hours to 100% with 1A charging current
