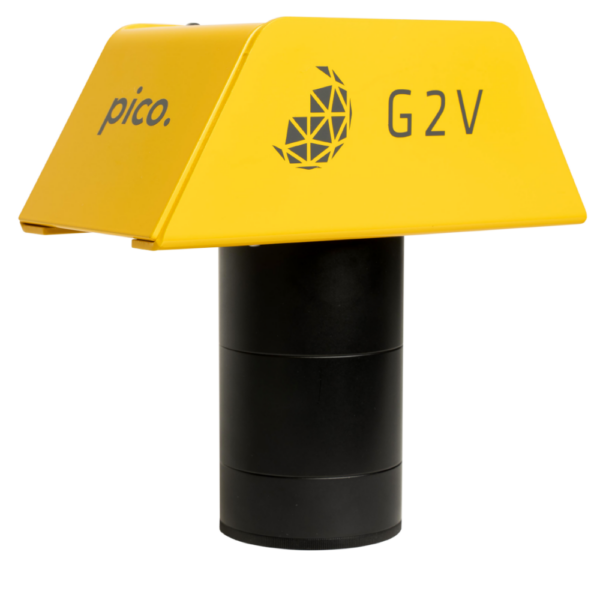

Pico™ Small Area LED Solar Simulator

G2V Optics has crafted the Pico LED small area solar simulator to provide truly controllable illumination, complete with software-controlled spectra, traceable calibration, all with no bulbs, filters, or moving parts. Replicate AM1.5G, AM0 – AM40, and geography-, season-, or time-specific spectra with the click of a button.

Category:

Description

Small Area LED Solar Simulation. Big Results.

G2V Optics has crafted the Pico LED small area solar simulator to provide truly controllable illumination, complete with software-controlled spectra, traceable calibration, all with no bulbs, filters, or moving parts. Replicate AM1.5G, AM0 – AM40, and geography-, season-, or time-specific spectra with the click of a button.

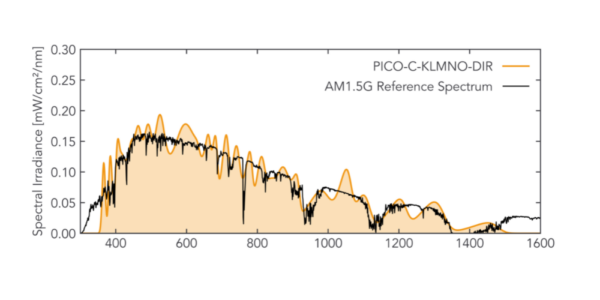

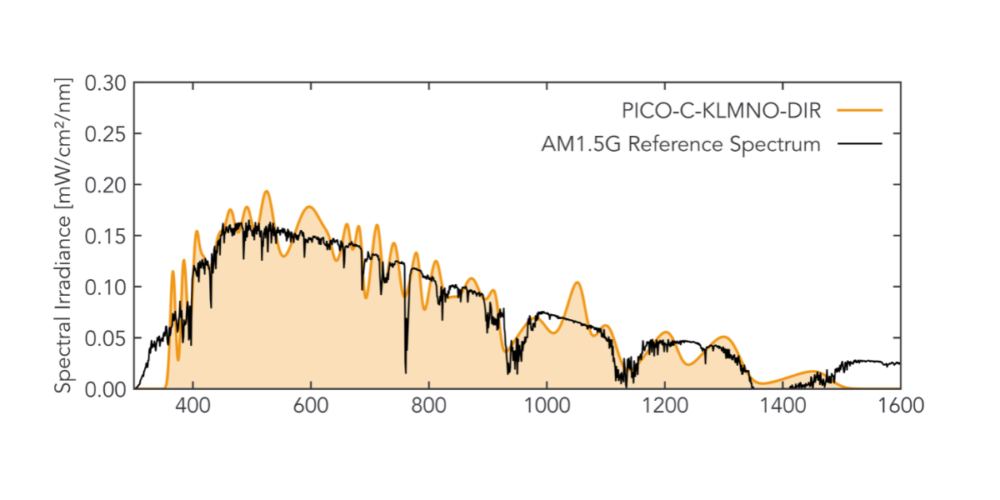

Class AAA LED Solar Simulator

The Pico provides an accurate solar spectrum that’s stable in time and uniform over the illuminated area, in a small footprint that can easily integrate into your existing infrastructure.

Designed To Grow With Your Research Needs. Because Your Research Matters.

Your research is changing the world. You can’t afford imprecise light that gives inaccurate results.

The Pico is a research-grade instrument suitable for testing any photosensitive (light-sensitive) materials or processes, including solar cells, sunscreen, plastics, photochromic devices, photochemical processes, environmental degradation, aerospace materials, and more.

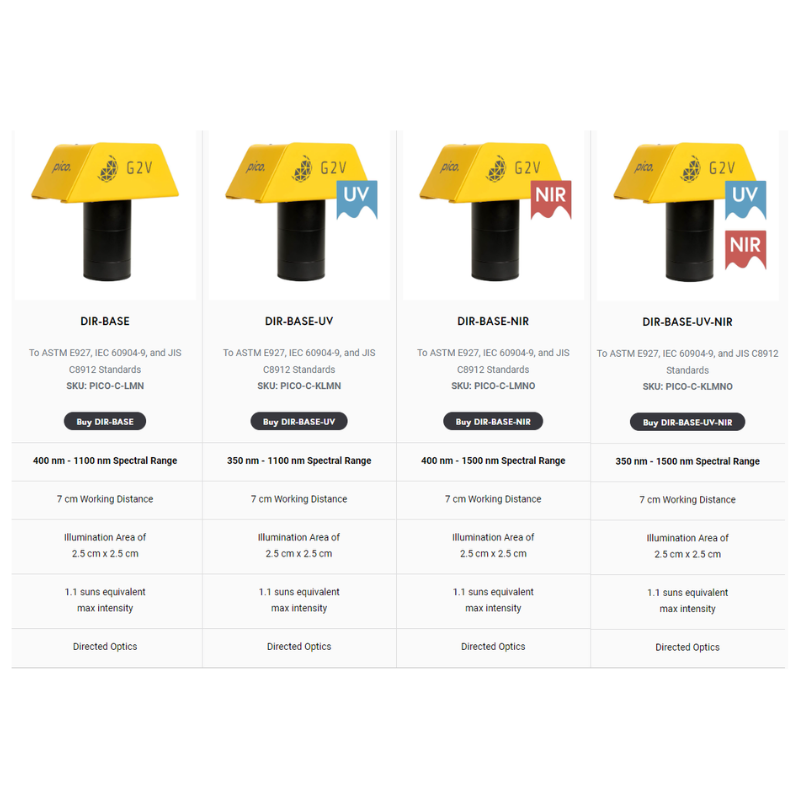

You choose a spectral range and upgrade to completely control spectrum & intensity, to measure photovoltaic IV characteristics, and to obtain low-resolution EQE measurements.

Upgrades

Variable Spectra Module

The Variable Spectra module unlocks full spectral control with software-controlled intensity manipulation. This upgrade enables control of up to 30 tunable channels to replicate virtually any solar condition.

The module’s software-controlled, user-programmable spectrum enables users to simulate and conduct spectrum-specific research.

Includes spectral presets for AM1.5G and AM0 to AM40, for intensities from 0 to 1.1 suns. Also includes One-Click Sun (beta) software.

One Click Sun (beta) Software Module

One-Click Sun™ Software (in beta) enables users to replicate irradiance and spectrum based on geography, season, and time of day. Our software was crafted to be simple, accurate and easily configurable.

IV Hardware Module

Integrated data collection hardware and software for PV PCE measurements

The IV module will measure the performance of a solar cell and generate a characterization report with all electrical characteristics – following the ASTM E1021 standard test method.

Obtain fast and accurate measurements for your research cells with Current-Voltage (IV) testing, and enjoy the ease of a system that integrates all the necessary analysis and equipment.

Low-Resolution EQE Hardware Module

Integrated data collection hardware and software for low-resolution EQE measurement

The Low-Resolution EQE module provides wavelength-resolved measurements of your photovoltaic device’s external quantum efficiency (EQE) under active conditions.

Following a test method analogous to the ASTM E1021 standard test method, the EQE module allows you to gain insight into the factors limiting solar cell performance.
