Sunbrick™ Large Area LED Solar Simulator.

Category:

Description

A Large Area LED Solar Simulator Fit For Any Space

Harness High-Precision Solar Simulation

Using advanced LED-driven illumination, the Sunbrick makes large-area solar simulation quick and easy. LED technology eliminates the need for bulb replacement or field calibration. With minimal warm-up time, you get operational faster, whether you need the standard AM1.5G spectrum or a specifically-requested calibration like AM0. Need to scale up your project? The Sunbrick can accommodate a wide range of working areas with its modular design capability. Its top features include:

  1. Programmable spectra
  2. Tileable large areas
  3. Spectral precision
  4. LED-driven illumination

Whether you need sunlight in a confined space or in your entire testing facility, the Sunbrick can provide the high-quality solar simulation solution you need.

Exceeding Class A

Sunbrick offers a high-consistency, high-precision spectral mismatch of less than 5% to exceed Class A requirements by a factor of 5 – as defined by ASTM E927, IEC 60904-9, and JIS C8912 Standards.

(Spectral Mismatch of <5%)

If you want to know if Sunbrick can help support your research and meet your goals, talk to one of our experts.

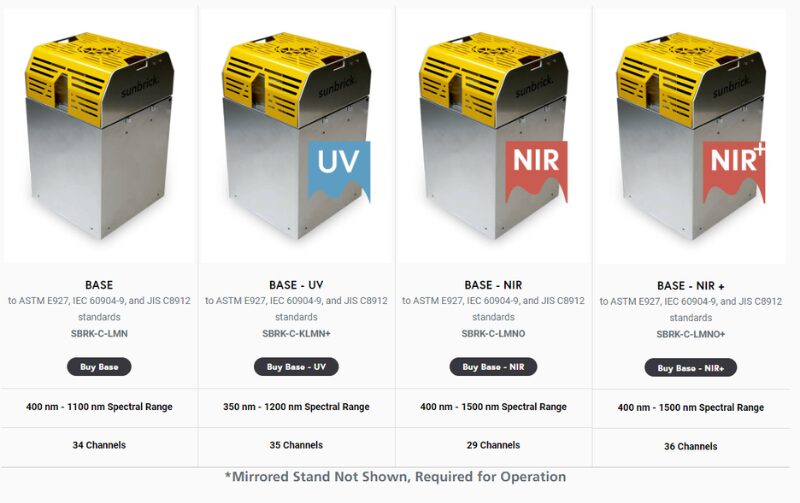

Available versions:

BASE, Class AAA, 400 nm – 1100 nm Spectral Range, Directed Optics
BASE-UV, Class AAA, 350 nm – 1200 nm Spectral Range, Directed Optics
BASE-NIR, Class AAA, 400 nm – 1500 nm Spectral Range, Directed Optics
BASE-NIR+, Class AAA, 400 nm – 1500 nm Spectral Range, Directed Optics, Boosted Power

Specifications

For the latest information on the Sunbrick large area LED solar simulator, please download the LED Solar Simulation Brochure.

Included is everything you need to know about the Sunbrick as well as a complete specification sheet. If you would like to know more please get in touch.

  • Technology: Continuous-wave (CW) solid-state light emitting diodes (LEDs)
  • Working Distance: Typically 50 cm (includes reflective walls that extend to the working plane)
  • Illumination Area: Total illumination area of 625 cm2 (25 cm x 25 cm) per Sunbrick unit with reflective walls, certified to Class A spatial non-uniformity for 400 cm2 (20 cm x 20 cm). Contact G2V Optics if you require a larger Class A area.
  • Irradiance: 0.1 – 1.1 suns equivalent intensity
  • Plug & Power Supply: Configuration specific to geographic region and array size
  • Materials: Powder-coated aluminium, brushed aluminium
  • Mounts: Single Sunbrick Vertical Stand or Custom n-Sunbrick Array Vertical Stands Available for varying configurations
  • Weight: 10.0 kg / 22.1 lbs per Sunbrick unit, 16.3 kg / 35.9 lbs for single Sunbrick vertical stand
  • Dimensions: 25 cm x 25 cm x 39 cm per Sunbrick unit, 34 cm x 44 cm x 102 cm for single Sunbrick vertical, stand Dimensions vary for custom array stands
