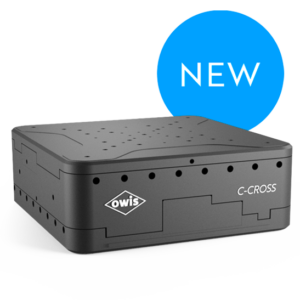

Motorized, compact high-precision XY stages
Thanks to their closed design, the C-CROSS are ideal for use in laboratory and cleanroom environments. The small footprint in relation to the travel distance and the integrated cable management enable space-saving integration into laboratory- and measuring devices.
the C-Cross will com in 2 flavours:
C-CROSS 105
- travel: 105 mm x 105 mm
- bidirectional repeatability: < 2 µm
- velocity up to 80 mm/s
C-CROSS 205
- travel: 205 mm x 205 mm
- bidirectional repeatability: < 2 µm
- Velocity up to 80 mm/s
Characteristics
- travel: 105 mm x 105 mm or 205 mm x 205 mm
- bidirectional repeatability: < 2 µm
- velocity up to 80 mm/s
- 2-phase stepper motor or DC servo motor with encoder
- precision ball screw drives
- precision crossed roller bearing guides
- compact footprint 200 mm x 200 mm or 291 mm x 291 mm
- low-reflection, black anodized
Options
- 2:1 gear ratio
- integrated measuring system
- clean room preparation
Technical data of the motor cables as well as a guidance for the selection of the suitable cable for your combination of positioner and controller can be found in the cable table.
The C-CROSS 205 XY stage, with a travel of 205 mm, has been optimized for applications in measuring and testing technology, as well as in laser micro-machining. Its closed design makes it ideal for use in laboratory and cleanroom environments. The small footprint in relation to the travel distance and the integrated cable management enable space-saving integration into laboratory and measuring devices.
The integration of high-precision aluminum components and the preloaded precision cross roller guides contributes to the low vertical and lateral deviation of the cross stages, enabling their simultaneous handling of high loads. The C-CROSS is available with high-resolution 2-phase stepper motors that are easily controllable or more dynamic DC servomotors with rotary encoders.
Additionally, the option to enhance the velocity is available through the incorporation of a 2:1 gear ratio, while the repeatability and positioning accuracy can be enhanced by means of an incremental linear measuring system. Furthermore, the stage can be prepared for cleanroom applications.
Fields of application
Metrology, high-resolution microscopy, biotechnology, medical technology, testing technology, inspection systems, laser processing, semiconductor technology.
