OZ Optics Introduces Automated Polarization Extinction Ratio Measurement System for MPO/MTP® PM Fiber Assemblies

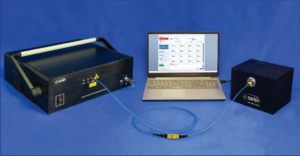

OZ Optics has introduced a new automated test platform designed for rapid and accurate polarization extinction ratio (PER) characterization of MPO/MTP® PM fiber patchcords, V-groove assemblies, and custom multi-fiber arrays. The turnkey solution combines an automated extinction ratio measurement system with a multi-channel polarized light source, enabling efficient testing of polarization-maintaining fiber assemblies in both production and R&D environments.

The system supports automatic fiber alignment through integrated motorized stages and can be configured with 12, 16, or 24-channel polarized light sources. Individual channel control allows users to perform multi-channel PER measurements on fiber arrays with varying channel pitches, including common spacing-s such as 125 µm and 250 µm.

Designed for photonic manufacturing and quality assurance applications, the platform delivers extinction ratio measurements up to 35 dB and provides an intuitive Windows-based software interface for automated testing and data collection. The system can be customized with user-specified fiber connectors and adapter configurations to match specific production requirements.

Typical application areas include:

• Polarization-maintaining fiber component manufacturing
• Optical communications and datacenter technologies
• Coherent and high-speed communication systems
• Photonic Integrated Circuits (PICs)
• Fiber sensing applications
• Component characterization and troubleshooting
• Research and development laboratories


The solution addresses the growing demand for repeatable, high-throughput testing of multi-fiber PM assemblies and offers a practical alternative to manual characterization methods.

For more information about this solution, contact TLS for technical advice, configuration options, and pricing.

Detailed info can also find on the product page by following link
