AXICONS – Now Also Precision Grade!

Axicons are widely used for different beam shaping setups together with other optical elements or alone:Axicones Eksma Optics

  • Transformation of a collimated Gaussian beam into an approximation of non-diffractive Bessel beam in the near field

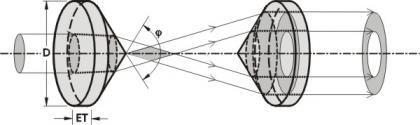

  • Conversion of a laser beam into a ring
  • Generation of thick-wall hollow “pipe” of light

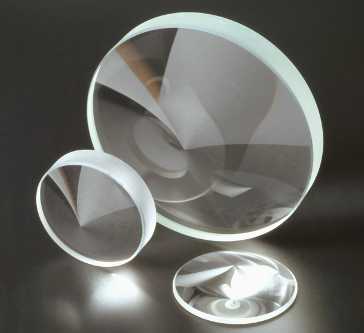

We are now pleased to offer you PRECISION GRADE CONICAL LENSES designed for high performance applications:

  • Made of UVFS
  • Surface Quality: 40-20 scratch & dig
  • Clear Aperture: 90% of the diameter
  • Diameter Tolerance: +0.00, -0.1 mm
  • Angle Tolerance: ±0.05° (±3 arcmin)
  • Surface Irregularity: λ/4 @ 633 nm
  • Apex Rounding: dia <0.4 mm

Axicon Eksma Optics
